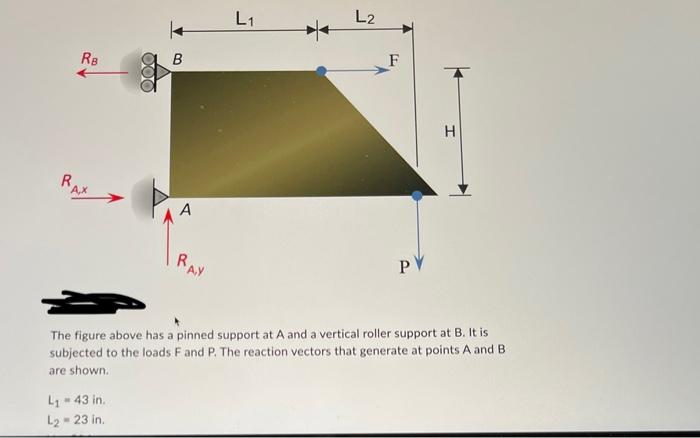

RB B L₁43 in. L₂-23 in. A RAY L₁ L2 F PV H The figure above has a pinned support at A and a vertical roller support at B. It is subjected to the loads F and P. The reaction vectors that generate at points A and B are shown.

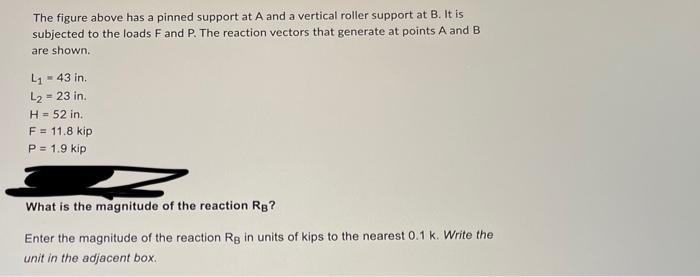

The figure above has a pinned support at A and a vertical roller support at B. It is subjected to the loads F and P. The reaction vectors that generate at points A and B are shown. 4₁ - 43 in. L2= 23 in. H = 52 in. F = 11.8 kip P = 1.9 kip What is the magnitude of the reaction RB? Enter the magnitude of the reaction Rg in units of kips to the nearest 0.1 k. Write the unit in the adjacent box.
