Fig Q13 shows the dimensions in mm of one of the front disc brakes on a passenger car. The effective radius of the frict

Post by answerhappygod »

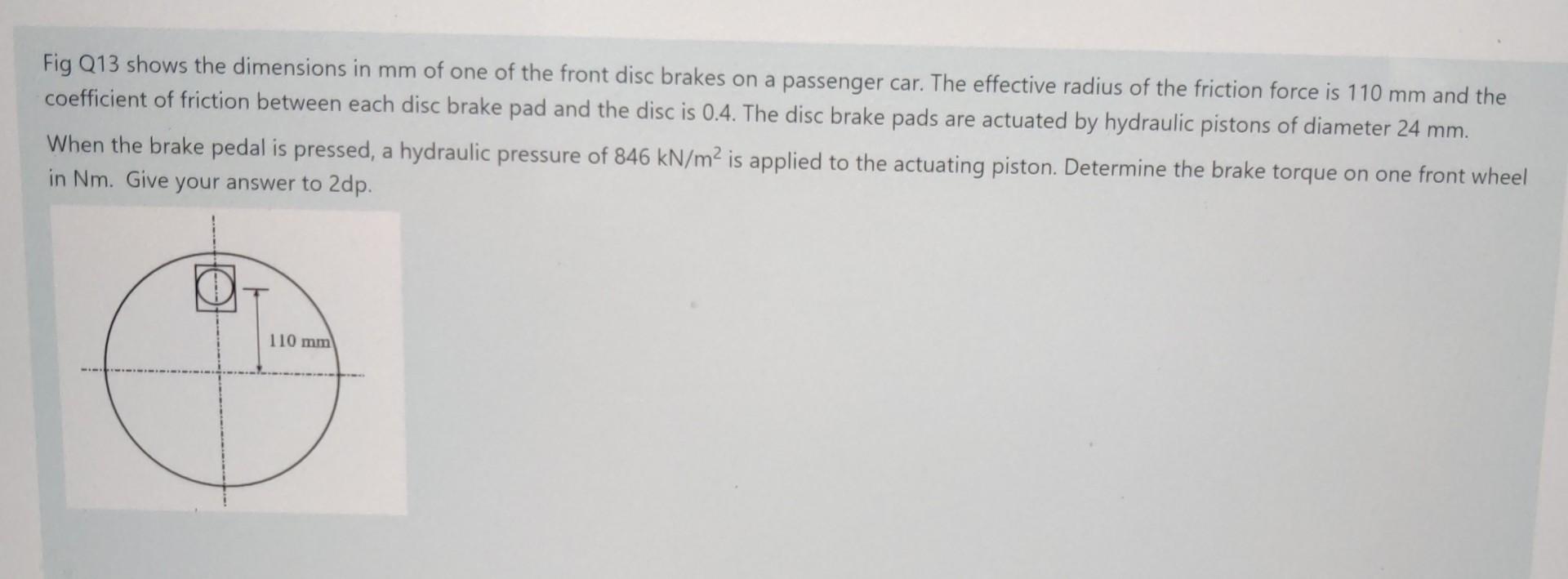

Fig Q13 Shows The Dimensions In Mm Of One Of The Front Disc Brakes On A Passenger Car The Effective Radius Of The Frict 1
Fig Q13 Shows The Dimensions In Mm Of One Of The Front Disc Brakes On A Passenger Car The Effective Radius Of The Frict 1 (69.57 KiB) Viewed 37 times
Fig Q13 shows the dimensions in mm of one of the front disc brakes on a passenger car. The effective radius of the friction force is 110 mm and the coefficient of friction between each disc brake pad and the disc is 0.4. The disc brake pads are actuated by hydraulic pistons of diameter 24 mm. When the brake pedal is pressed, a hydraulic pressure of 846 kN/m² is applied to the actuating piston. Determine the brake torque on one front wheel in Nm. Give your answer to 2dp. 110 mm
