A similar pair of helical gears to that in Q1, also on parallel axes, are to have involute teeth, of 20° normal pressure

Post by answerhappygod »

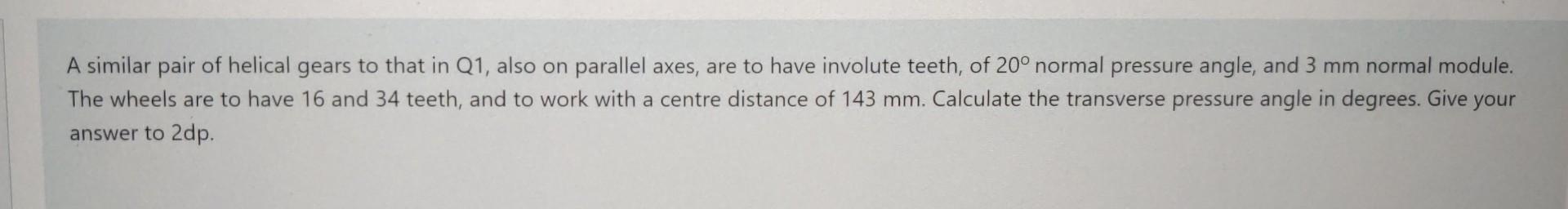

A Similar Pair Of Helical Gears To That In Q1 Also On Parallel Axes Are To Have Involute Teeth Of 20 Normal Pressure 1
A Similar Pair Of Helical Gears To That In Q1 Also On Parallel Axes Are To Have Involute Teeth Of 20 Normal Pressure 1 (38.52 KiB) Viewed 38 times
A similar pair of helical gears to that in Q1, also on parallel axes, are to have involute teeth, of 20° normal pressure angle, and 3 mm normal module. The wheels are to have 16 and 34 teeth, and to work with a centre distance of 143 mm. Calculate the transverse pressure angle in degrees. Give your answer to 2dp.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
