(13 points) Difficulty (3/5) Three bars are connected with frictionless pins to form the frame shown. The frame is loade

[answerhappygod]

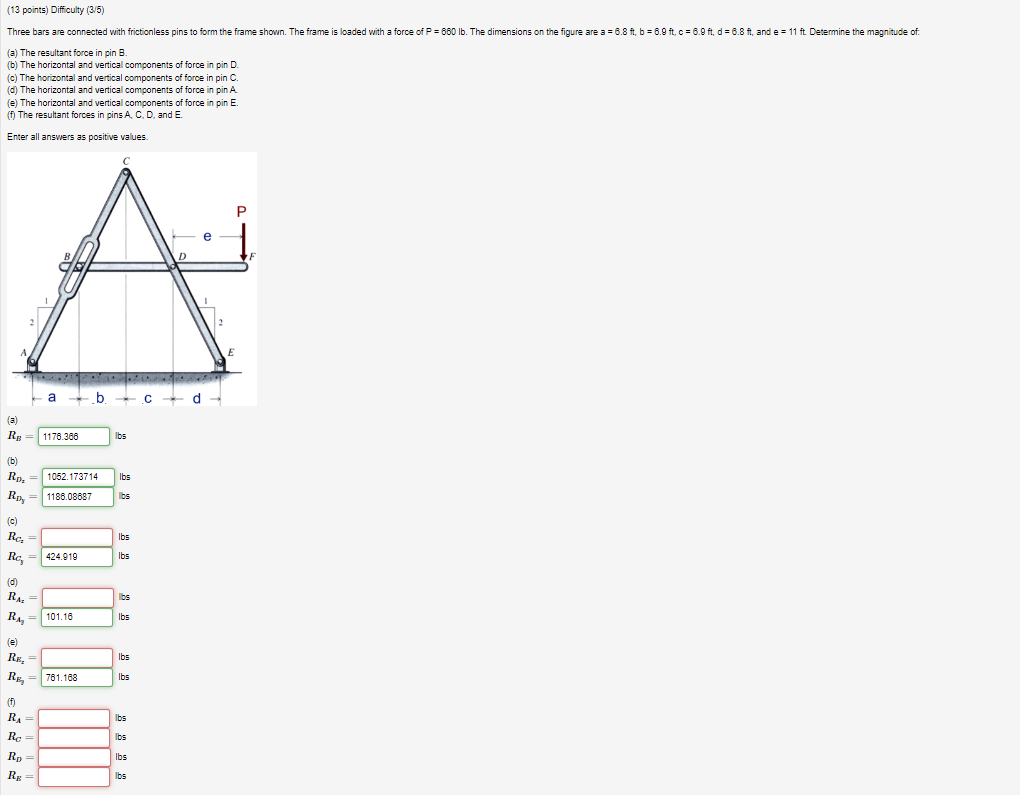

13 Points Difficulty 3 5 Three Bars Are Connected With Frictionless Pins To Form The Frame Shown The Frame Is Loade 1 (79.85 KiB) Viewed 39 times

(13 points) Difficulty (3/5) Three bars are connected with frictionless pins to form the frame shown. The frame is loaded with a force of P = 880 lb. The dimensions on the figure are a = 6.8 ft. b = 6.9 ft. c = 6.9 ft, d = 6.8 ft, and e = 11 ft. Determine the magnitude of (a) The resultant force in pin B. (b) The horizontal and vertical components of force in pin (c) The horizontal and vertical components of force in pin C. (d) The horizontal and vertical components of force in pin A (e) The horizontal and vertical components of force in pin E. (f) The resultant forces in pins A, C, D, and E. Enter all answers as positive values. (a) Rg (b) Rp₂ Rp₂ (c) Rc₂= Rc, (0) RA R₁₂ (e) RE, Rg₂ - а ..?! a (1) R₁ Re= Rp = Rg= 1176.366 * b c d d→ 1052.173714 lbs 1186.08687 424.919 101.16 =761.168 lbs lbs lbs lbs lbs lbs lbs lbs lbs lbs D lbs lbs e E P
