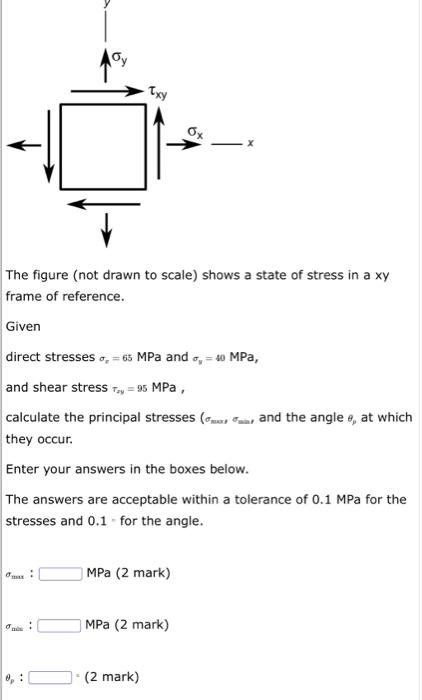

Oy mus : The figure (not drawn to scale) shows a state of stress in a xy frame of reference. Given direct stresses , = 6

[answerhappygod]

Oy Mus The Figure Not Drawn To Scale Shows A State Of Stress In A Xy Frame Of Reference Given Direct Stresses 6 1 (26.11 KiB) Viewed 43 times

Oy mus : The figure (not drawn to scale) shows a state of stress in a xy frame of reference. Given direct stresses , = 65 MPa and , 40 MPa, and shear stress T, = 95 MPa, calculate the principal stresses (and the angle e, at which they occur. Enter your answers in the boxes below. g: Txy The answers are acceptable within a tolerance of 0.1 MPa for the stresses and 0.1 for the angle. MPa (2 mark) ox MPa (2 mark) (2 mark)
