30 Points A wide sheet (1 mm thick) of steel is bent elastically to a constant radius of curvature, p 50 cm, measured fr

[answerhappygod]

30 Points A Wide Sheet 1 Mm Thick Of Steel Is Bent Elastically To A Constant Radius Of Curvature P 50 Cm Measured Fr 1 (148.13 KiB) Viewed 32 times

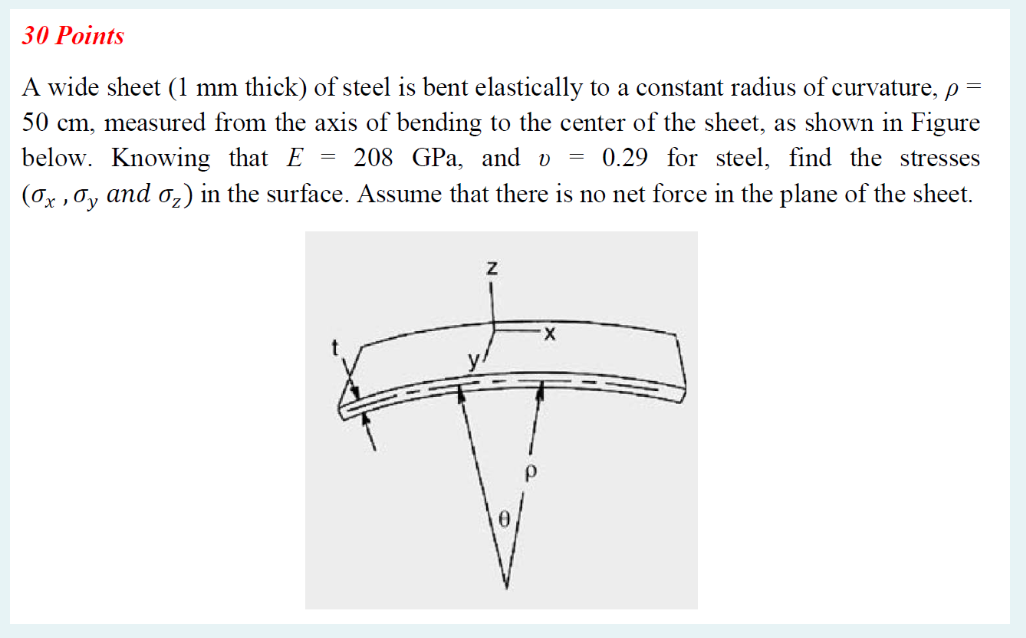

30 Points A wide sheet (1 mm thick) of steel is bent elastically to a constant radius of curvature, p 50 cm, measured from the axis of bending to the center of the sheet, as shown in Figure below. Knowing that E = 208 GPa, and v = 0.29 for steel, find the stresses (ox, oy and σ₂) in the surface. Assume that there is no net force in the plane of the sheet. Z
