The wooden section of the beam is reinforced with two stoel plates as shown in the figure below The beam is subjected to

Post by answerhappygod »

The Wooden Section Of The Beam Is Reinforced With Two Stoel Plates As Shown In The Figure Below The Beam Is Subjected To 1

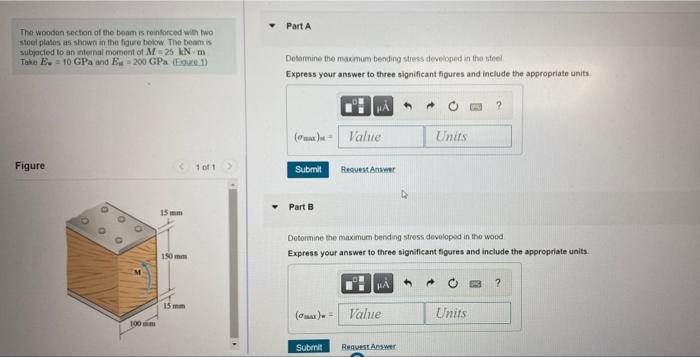

The Wooden Section Of The Beam Is Reinforced With Two Stoel Plates As Shown In The Figure Below The Beam Is Subjected To 1 (27.23 KiB) Viewed 34 times
The wooden section of the beam is reinforced with two stoel plates as shown in the figure below The beam is subjected to an internal moment of M=25 kN m Take E10 GPa and E 200 GPa (Egure 1) Figure 9 100mm 15 mm 150 mm 15 mm 1 of 1 Part A Determine the maximum bending stress developed in the steel Express your answer to three significant figures and include the appropriate units. HÅ (a) Value Submit Request Answer Part B (max) = Determine the maximum bending stress developed in the wood Express your answer to three significant figures and include the appropriate units. Submit НА Value → Request Answer Units Units ?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
