A symmetrical I-beam is subject to a shear force of 29271N acting along its entire length. The beam has two flanges each

Post by answerhappygod »

A Symmetrical I Beam Is Subject To A Shear Force Of 29271n Acting Along Its Entire Length The Beam Has Two Flanges Each 1
A Symmetrical I Beam Is Subject To A Shear Force Of 29271n Acting Along Its Entire Length The Beam Has Two Flanges Each 1 (34.53 KiB) Viewed 45 times

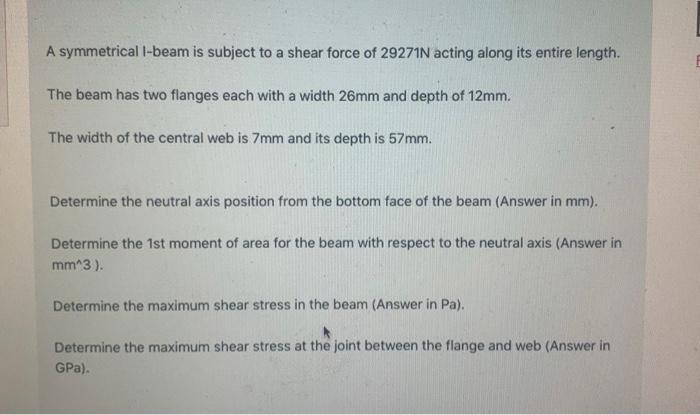

A symmetrical I-beam is subject to a shear force of 29271N acting along its entire length. The beam has two flanges each with a width 26mm and depth of 12mm. The width of the central web is 7mm and its depth is 57mm. Determine the neutral axis position from the bottom face of the beam (Answer in mm). Determine the 1st moment of area for the beam with respect to the neutral axis (Answer in mm^3). Determine the maximum shear stress in the beam (Answer in Pa). Determine the maximum shear stress at the joint between the flange and web (Answer in GPa).
