- Exercise 5 Figure 2 Shows A Wheatstone Bridge Circuit Vin R A B R3 2 R D Figure 2 I Calculate Vout If Vin 50v R 1 (36.05 KiB) Viewed 35 times

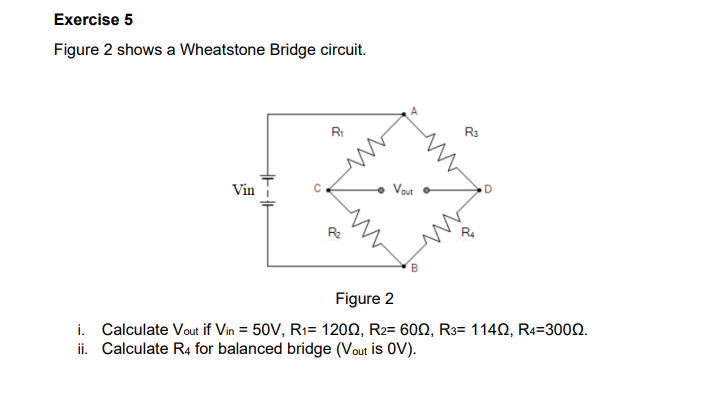

Exercise 5 Figure 2 shows a Wheatstone Bridge circuit. Vin R₂ A B R3 2 R D Figure 2 i. Calculate Vout if Vin = 50V, R₁=
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Exercise 5 Figure 2 shows a Wheatstone Bridge circuit. Vin R₂ A B R3 2 R D Figure 2 i. Calculate Vout if Vin = 50V, R₁=
Exercise 5 Figure 2 shows a Wheatstone Bridge circuit. Vin R₂ A B R3 2 R D Figure 2 i. Calculate Vout if Vin = 50V, R₁= 1200, R₂= 600, R3= 1140, R4=3000. Calculate R4 for balanced bridge (Vout is OV). ii.
