4- The air inside a chamber at T = 50°C is heated convectively with h = 20 W/m²K by a 200-mm-thick wall having a thermal

[answerhappygod]

4 The Air Inside A Chamber At T 50 C Is Heated Convectively With H 20 W M K By A 200 Mm Thick Wall Having A Thermal 1 (104.71 KiB) Viewed 44 times

Please show work clearly and organized ,don't use Cursivehandwriting .

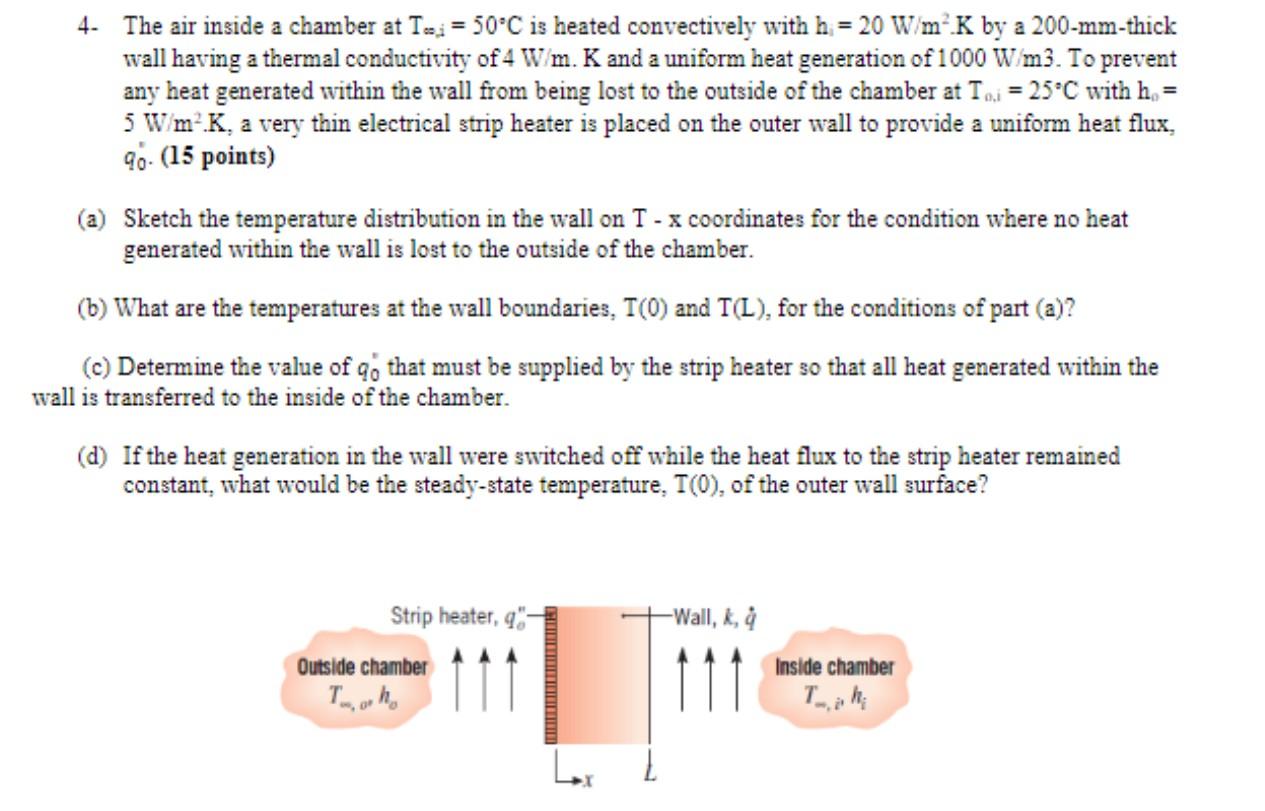

4- The air inside a chamber at T = 50°C is heated convectively with h = 20 W/m²K by a 200-mm-thick wall having a thermal conductivity of 4 W/m. K and a uniform heat generation of 1000 W/m3. To prevent any heat generated within the wall from being lost to the outside of the chamber at Toi = 25°C with ho= 5 W/m².K, a very thin electrical strip heater is placed on the outer wall to provide a uniform heat flux, 90- (15 points) (a) Sketch the temperature distribution in the wall on T-x coordinates for the condition where no heat generated within the wall is lost to the outside of the chamber. (b) What are the temperatures at the wall boundaries, T(0) and T(L), for the conditions of part (a)? (c) Determine the value of qo that must be supplied by the strip heater so that all heat generated within the wall is transferred to the inside of the chamber. (d) If the heat generation in the wall were switched off while the heat flux to the strip heater remained constant, what would be the steady-state temperature, T(0), of the outer wall surface? Strip heater, g- Outside chamber Torh Lx -Wall, k, 4 Inside chamber Th
