PROB #2. THE BRACKET IN THE FIGURE IS SUBJECTED TO AN ECCENTRIC LOADING OF 40 KN. USING A325 BOLTS, DETERMINE THE FOLLOW

Post by answerhappygod »

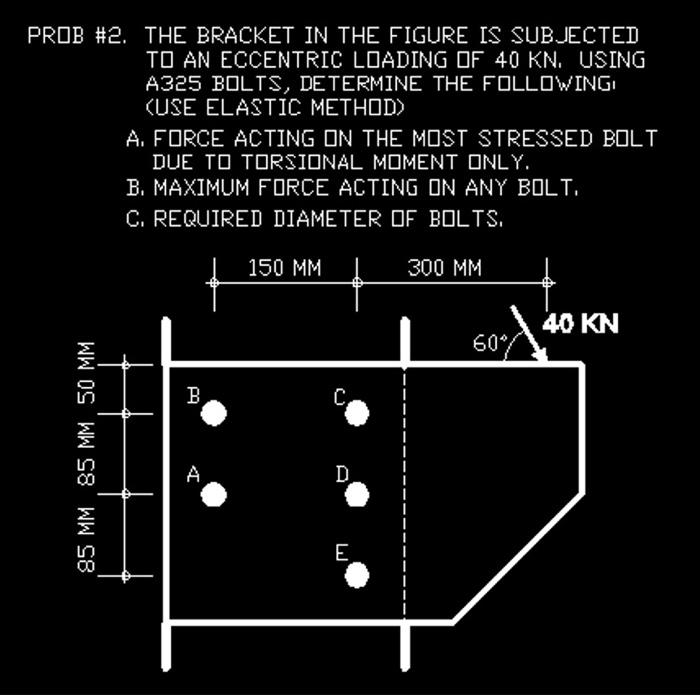

Prob 2 The Bracket In The Figure Is Subjected To An Eccentric Loading Of 40 Kn Using A325 Bolts Determine The Follow 1
Prob 2 The Bracket In The Figure Is Subjected To An Eccentric Loading Of 40 Kn Using A325 Bolts Determine The Follow 1 (53.43 KiB) Viewed 33 times
PROB #2. THE BRACKET IN THE FIGURE IS SUBJECTED TO AN ECCENTRIC LOADING OF 40 KN. USING A325 BOLTS, DETERMINE THE FOLLOWING (USE ELASTIC METHOD) 85 MM 85 MM 50 MM 5 A. FORCE ACTING ON THE MOST STRESSED BOLT DUE TO TORSIONAL MOMENT ONLY. B. MAXIMUM FORCE ACTING ON ANY BOLT. C. REQUIRED DIAMETER OF BOLTS. B 150 MM C. D E 300 MM 60% 40 KN
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
