PROBLEM 2: Equivalent Systems The system below is to be converted to a single force P and a single moment B at point M.

[answerhappygod]

Problem 2 Equivalent Systems The System Below Is To Be Converted To A Single Force P And A Single Moment B At Point M 1 (58.75 KiB) Viewed 21 times

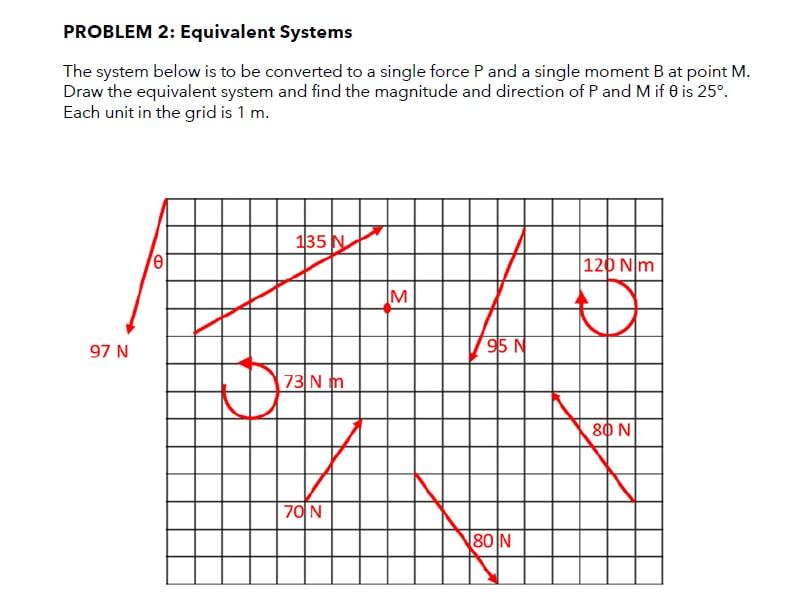

PROBLEM 2: Equivalent Systems The system below is to be converted to a single force P and a single moment B at point M. Draw the equivalent system and find the magnitude and direction of P and M if 0 is 25°. Each unit in the grid is 1 m. 97 N Ө 135 N 73 Nm 70 N M 95 N 80 N 120 Nm 80 N
