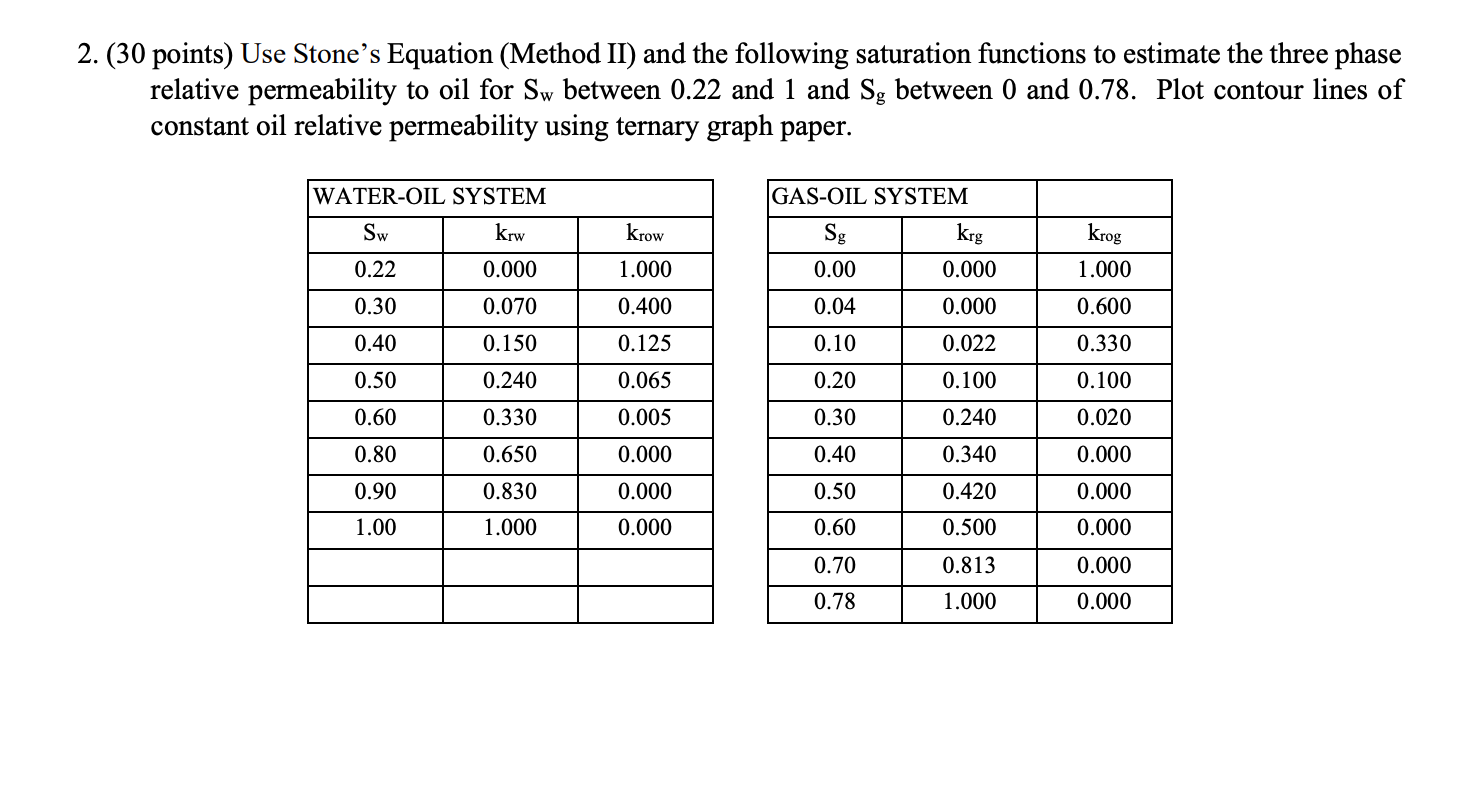

2. (30 points) Use Stone's Equation (Method II) and the following saturation functions to estimate the three phase relative permeability to oil for Sw between 0.22 and 1 and Sg between 0 and 0.78. Plot contour lines of constant oil relative permeability using ternary graph paper. WATER-OIL SYSTEM Sw krw 0.22 0.000 0.30 0.070 0.40 0.150 0.50 0.240 0.60 0.330 0.80 0.650 0.90 0.830 1.00 1.000 Krow 1.000 0.400 0.125 0.065 0.005 0.000 0.000 0.000 GAS-OIL SYSTEM Sg 0.00 0.04 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.78 krg 0.000 0.000 0.022 0.100 0.240 0.340 0.420 0.500 0.813 1.000 Krog 1.000 0.600 0.330 0.100 0.020 0.000 0.000 0.000 0.000 0.000
