5. (a) (b) (c) mechanical properties of Describe five (5) engineering materials. Draw a Load Extension Graph for ductile

[answerhappygod]

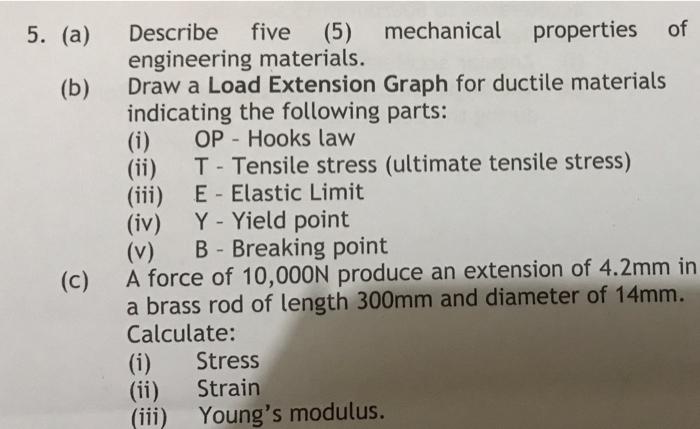

5 A B C Mechanical Properties Of Describe Five 5 Engineering Materials Draw A Load Extension Graph For Ductile 1 (38.94 KiB) Viewed 40 times

5. (a) (b) (c) mechanical properties of Describe five (5) engineering materials. Draw a Load Extension Graph for ductile materials indicating the following parts: (i) OP Hooks law (ii) T Tensile stress (ultimate tensile stress) E Elastic Limit Y-Yield point (iii) (iv) (v) B- Breaking point A force of 10,000N produce an extension of 4.2mm in a brass rod of length 300mm and diameter of 14mm. Calculate: (i) Stress (ii) Strain (iii) Young's modulus.
