له R1 R1 R2 R3 R2 In the following circuit, R1-28.2 Ohm, R2-4" 1 Ohm, R3-4* 1 Ohm, R4-2° 1 Ohm, R5-28.2 Ohm, Calculate t

[answerhappygod]

1 (33.13 KiB) Viewed 58 times

2 (19.89 KiB) Viewed 58 times

3 (17.86 KiB) Viewed 58 times

4 (21.36 KiB) Viewed 58 times

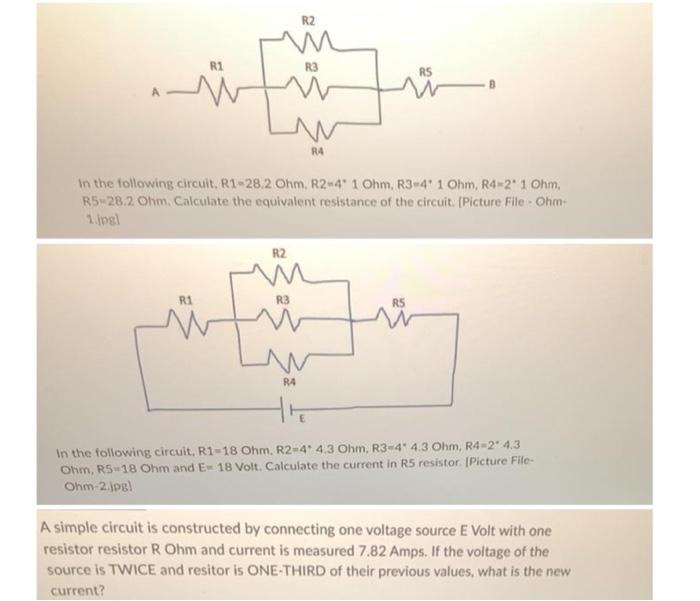

له R1 R1 R2 R3 R2 In the following circuit, R1-28.2 Ohm, R2-4" 1 Ohm, R3-4* 1 Ohm, R4-2° 1 Ohm, R5-28.2 Ohm, Calculate the equivalent resistance of the circuit. [Picture File - Ohm- 1.jpgl R4 R3 RA M In the following circuit, R1-18 Ohm, R2-4 4.3 Ohm, R3-4 4.3 Ohm, R4-2° 4.3 Ohm, R5-18 Ohm and E-18 Volt. Calculate the current in R5 resistor. (Picture File- Ohm-2.jpg] A simple circuit is constructed by connecting one voltage source E Volt with one resistor resistor R Ohm and current is measured 7.82 Amps. If the voltage of the source is TWICE and resitor is ONE-THIRD of their previous values, what is the new current?

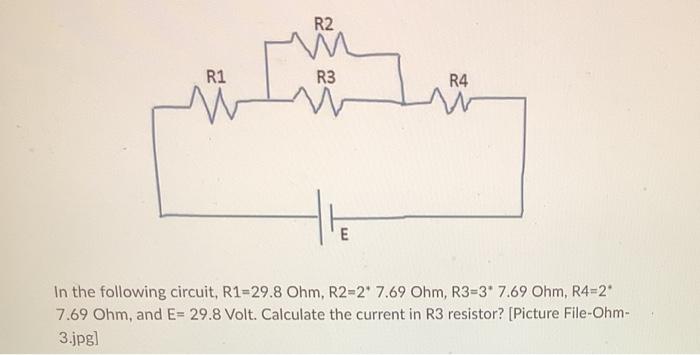

R1 R2 R3 E R4 w In the following circuit, R1-29.8 Ohm, R2-2* 7.69 Ohm, R3-3* 7.69 Ohm, R4=2* 7.69 Ohm, and E= 29.8 Volt. Calculate the current in R3 resistor? [Picture File-Ohm- 3.jpg]

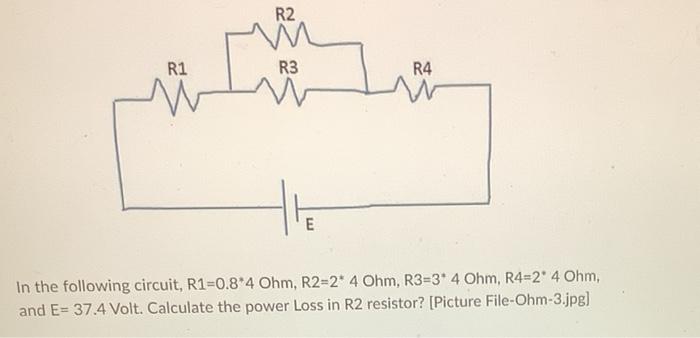

R1 R2 M R3 E R4 w In the following circuit, R1-0.8 4 Ohm, R2=2* 4 Ohm, R3-3* 4 Ohm, R4-2° 4 Ohm, and E= 37.4 Volt. Calculate the power Loss in R2 resistor? [Picture File-Ohm-3.jpg]

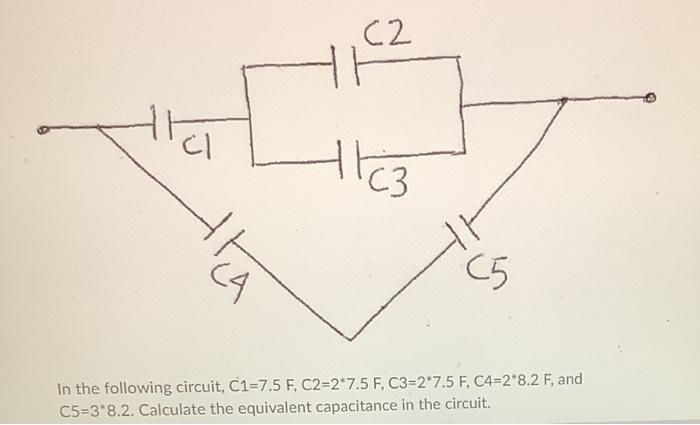

C2 ・C3 くら In the following circuit, C1-7.5 F, C2=2*7.5 F, C3=2*7.5 F, C4-2*8.2 F, and C5=3 8.2. Calculate the equivalent capacitance in the circuit.
