A C2 C4 HH C5 C1=4F, C2=4F, C3=2F, C4-4F, C5= 14.7 F. Calculate the equivalent capacitance between A and B points. A pa

[answerhappygod]

A C2 C4 Hh C5 C1 4f C2 4f C3 2f C4 4f C5 14 7 F Calculate The Equivalent Capacitance Between A And B Points A Pa 1 (14.67 KiB) Viewed 46 times

A C2 C4 Hh C5 C1 4f C2 4f C3 2f C4 4f C5 14 7 F Calculate The Equivalent Capacitance Between A And B Points A Pa 2 (20.32 KiB) Viewed 46 times

A C2 C4 Hh C5 C1 4f C2 4f C3 2f C4 4f C5 14 7 F Calculate The Equivalent Capacitance Between A And B Points A Pa 3 (16.74 KiB) Viewed 46 times

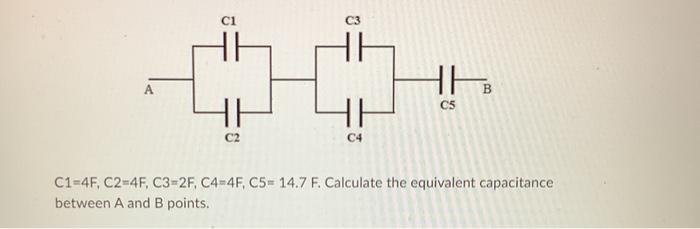

A C2 C4 HH C5 C1=4F, C2=4F, C3=2F, C4-4F, C5= 14.7 F. Calculate the equivalent capacitance between A and B points.

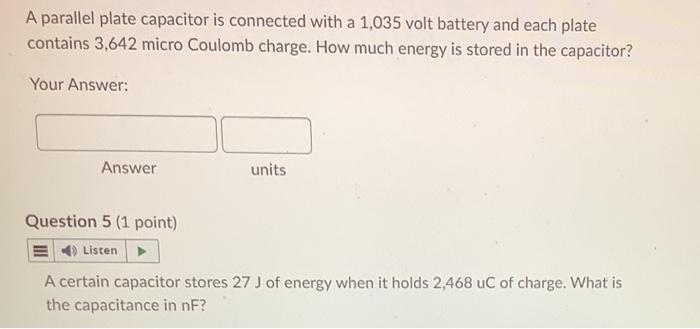

A parallel plate capacitor is connected with a 1,035 volt battery and each plate contains 3,642 micro Coulomb charge. How much energy is stored in the capacitor? Your Answer: Answer Question 5 (1 point) Listen units A certain capacitor stores 27 J of energy when it holds 2,468 uC of charge. What is the capacitance in nF?

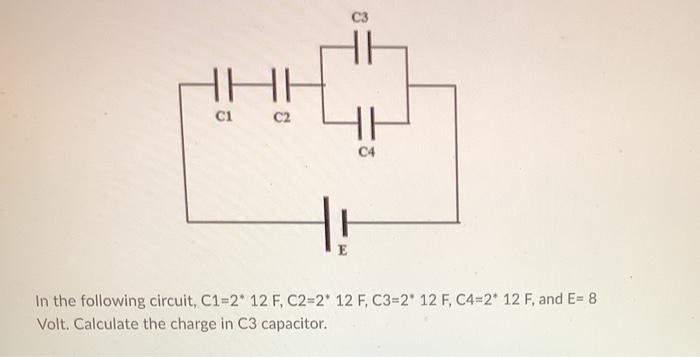

HI C1 C2 C3 HH C4 E In the following circuit, C1-2 12 F, C2-2 12 F, C3-2 12 F, C4-2* 12 F, and E= 8 Volt. Calculate the charge in C3 capacitor.
