Please help for a and b, i'm on my last attempt
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Please help for a and b, i'm on my last attempt
Please help for a and b, i'm on my last attempt

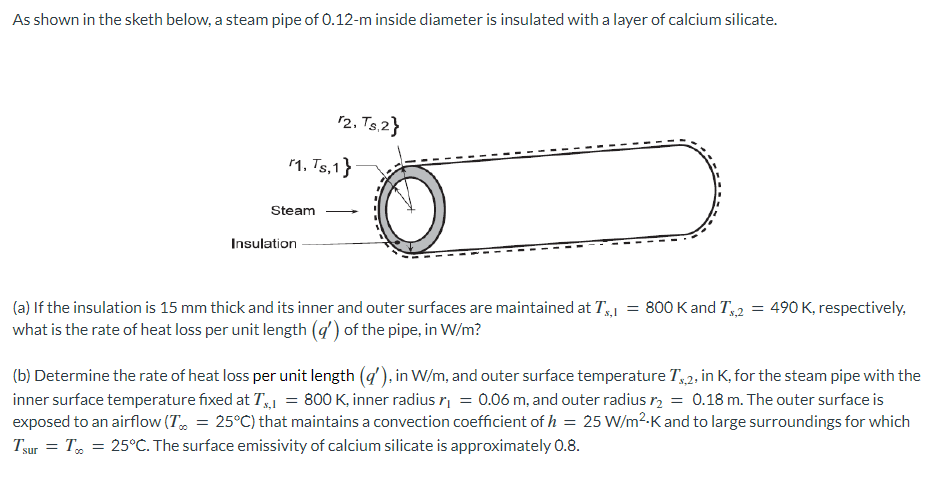

As shown in the sketh below, a steam pipe of 0.12-m inside diameter is insulated with a layer of calcium silicate. 1. Ts,1} Steam 2. Ts.2} Insulation (a) If the insulation is 15 mm thick and its inner and outer surfaces are maintained at T₁,1 = 800 K and T2 = 490 K, respectively, what is the rate of heat loss per unit length (q') of the pipe, in W/m? (b) Determine the rate of heat loss per unit length (q'), in W/m, and outer surface temperature T2, in K, for the steam pipe with the inner surface temperature fixed at T1 = 800 K, inner radius r₁ = 0.06 m, and outer radius r₂ = 0.18 m. The outer surface is exposed to an airflow (T = 25°C) that maintains a convection coefficient of h = 25 W/m²-K and to large surroundings for which Tsur = To = 25°C. The surface emissivity of calcium silicate is approximately 0.8.
As shown in the sketh below, a steam pipe of 0.12-m inside diameter is insulated with a layer of calcium silicate. 1. Ts,1} Steam 2. Ts.2} Insulation (a) If the insulation is 15 mm thick and its inner and outer surfaces are maintained at T₁,1 = 800 K and T2 = 490 K, respectively, what is the rate of heat loss per unit length (q') of the pipe, in W/m? (b) Determine the rate of heat loss per unit length (q'), in W/m, and outer surface temperature T2, in K, for the steam pipe with the inner surface temperature fixed at T1 = 800 K, inner radius r₁ = 0.06 m, and outer radius r₂ = 0.18 m. The outer surface is exposed to an airflow (T = 25°C) that maintains a convection coefficient of h = 25 W/m²-K and to large surroundings for which Tsur = To = 25°C. The surface emissivity of calcium silicate is approximately 0.8.
