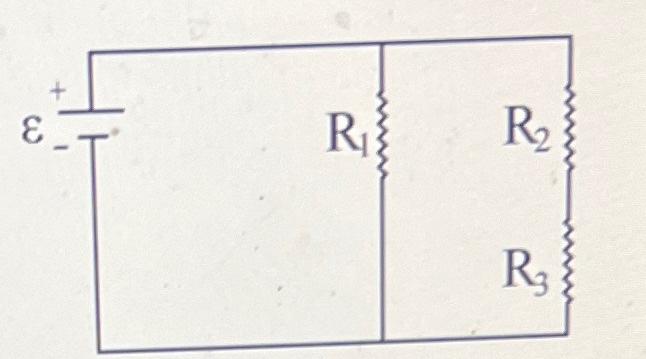

14%) Problem 6: In the circuit pictured, the resistors have values of R₁ = 140 Q, R₂ = 81 Q, and R3= 199 Q, and the battery has an emf e = 201 V.
R₁} R₂ R₂

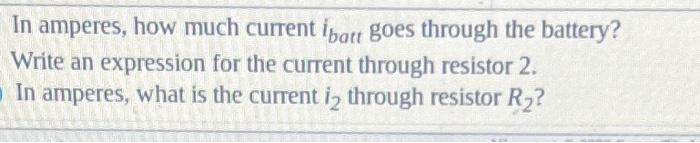

In amperes, how much current ibatt goes through the battery? Write an expression for the current through resistor 2. In amperes, what is the current i2 through resistor R₂?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
