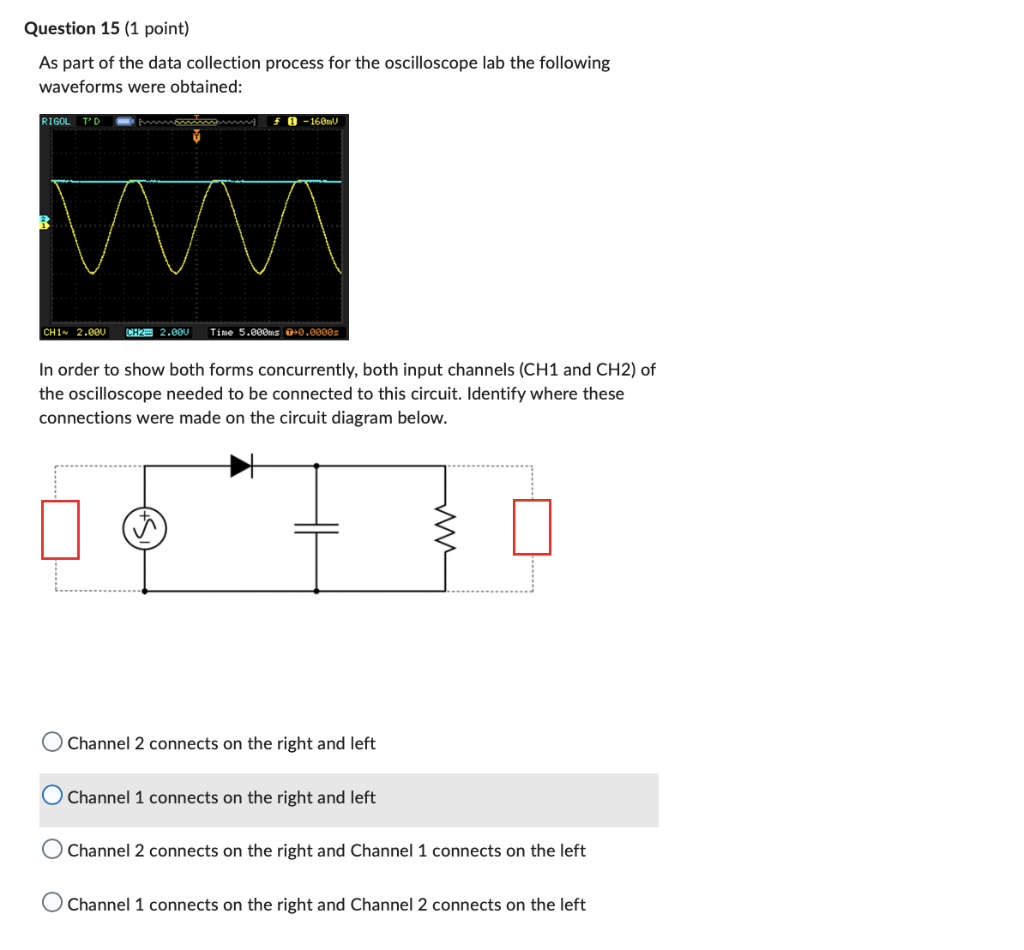

Question 15 (1 point) As part of the data collection process for the oscilloscope lab the following waveforms were obtai

[answerhappygod]

Question 15 1 Point As Part Of The Data Collection Process For The Oscilloscope Lab The Following Waveforms Were Obtai 1 (162.92 KiB) Viewed 47 times

Question 15 (1 point) As part of the data collection process for the oscilloscope lab the following waveforms were obtained: RIGOL T'D B f-160mU CHIA 2.000. CH2 2.000 Time 5.000ms 0+0.0000s In order to show both forms concurrently, both input channels (CH1 and CH2) of the oscilloscope needed to be connected to this circuit. Identify where these connections were made on the circuit diagram below. O Channel 2 connects on the right and left O Channel 1 connects on the right and left O Channel 2 connects on the right and Channel 1 connects on the left O Channel 1 connects on the right and Channel 2 connects on the left
