For the circuit shown in the figure, what is the emf (e) for the battery if current through the 4Ω resistor is 0.5A? | 3

Post by answerhappygod »

1
1 (28.54 KiB) Viewed 34 times
2
2 (28.54 KiB) Viewed 34 times

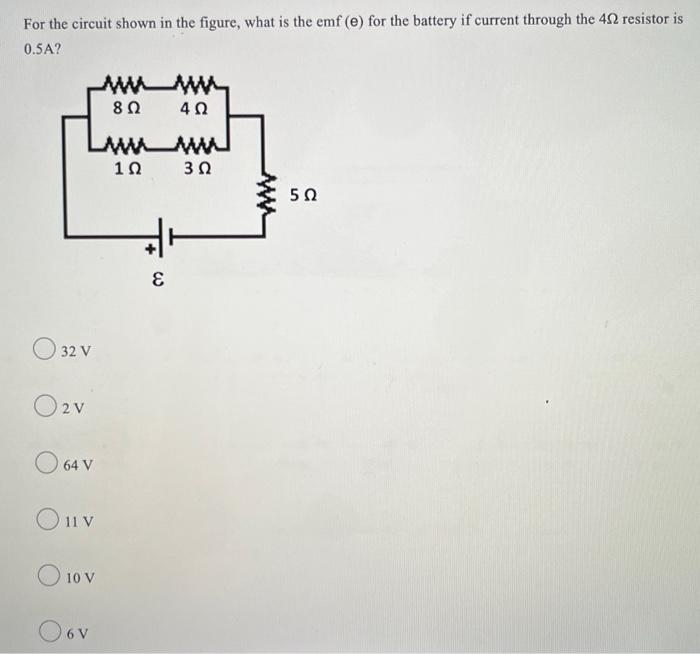

For the circuit shown in the figure, what is the emf (e) for the battery if current through the 4Ω resistor is 0.5A? | 32 V Ov Ο σαν Ouv Οιον 06V 8 Ω 1Ω H E 4 Ω 3 Ω 5 Ω
