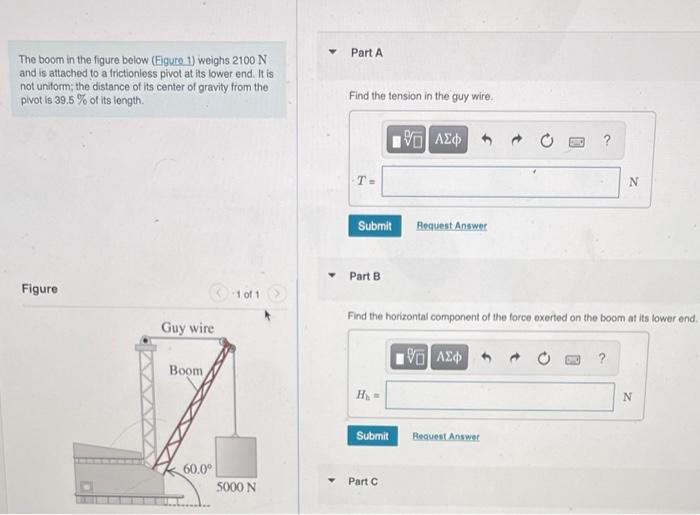

The boom in the figure below (Eigure 1) weighs 2100 N and is attached to a frictionless pivot at its lower end. It is not uniform; the distance of its center of gravity from the pivot is 39.5 % of its length. Figure Guy wire Boom 60.0⁰ 1 of 1 5000 N Y Part A Find the tension in the guy wire. T= Submit Part B Submit 195] ΑΣΦ Part C Request Answer Find the horizontal component of the force exerted on the boom at its lower end. 195] ΑΣΦΑ a Request Answer N ? N

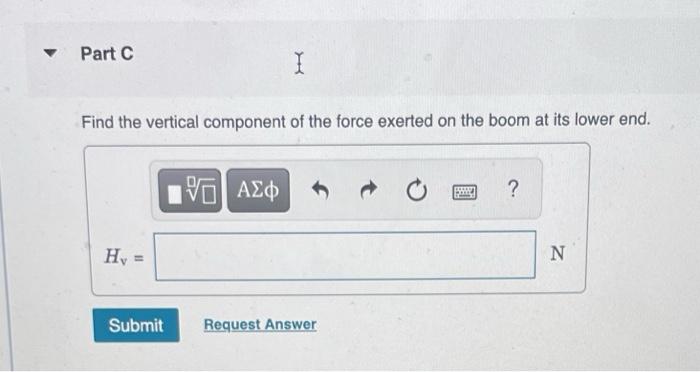

▾ Part C Find the vertical component of the force exerted on the boom at its lower end. Hy = Submit I [5] ΑΣΦ Request Answer Food ? N
