For the RL circuit pictured below, L = 63 Henries and R = 7.3 Ohms. The switch is placed in position 1 for a long time b

Post by answerhappygod »

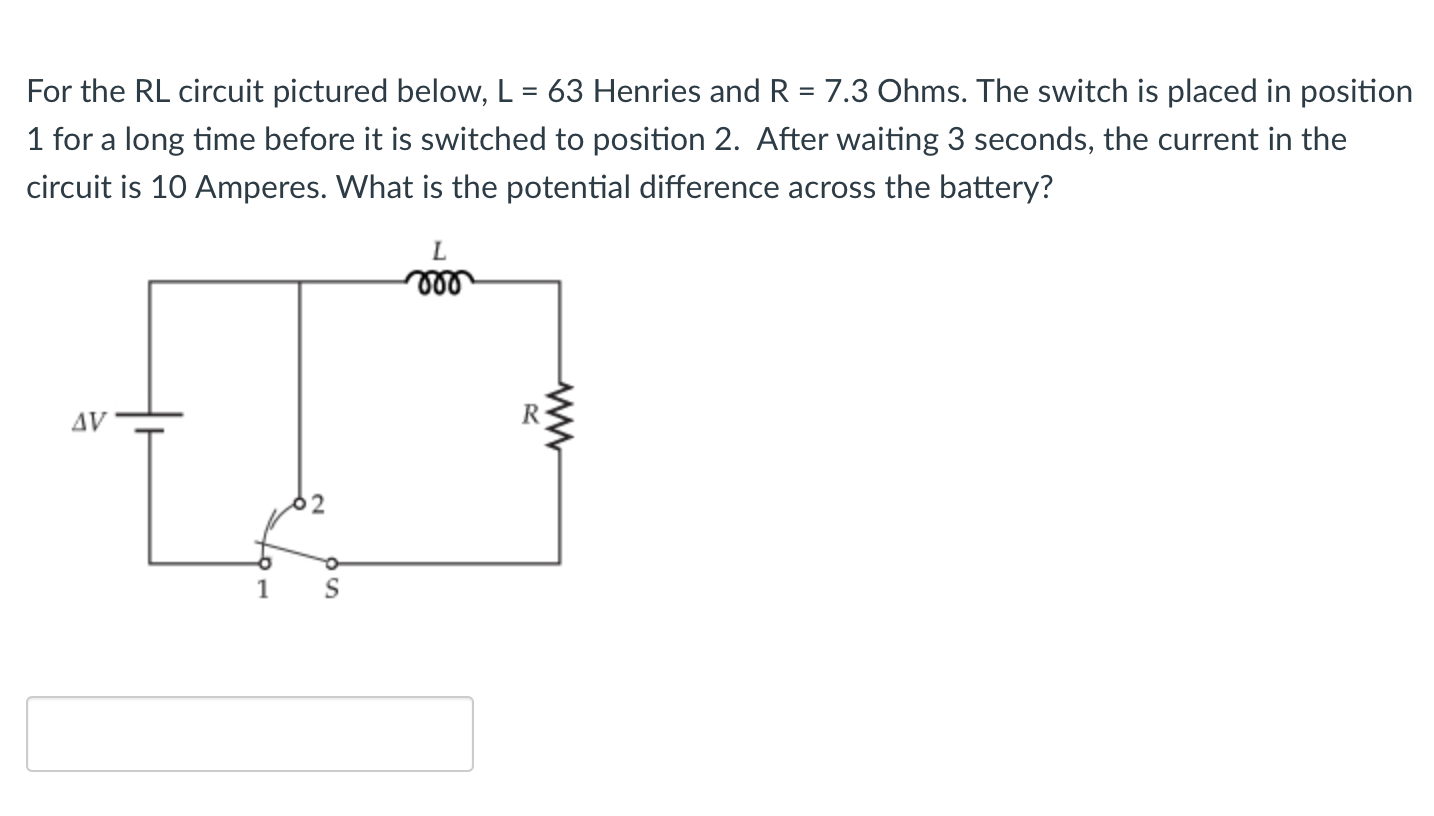

For The Rl Circuit Pictured Below L 63 Henries And R 7 3 Ohms The Switch Is Placed In Position 1 For A Long Time B 1
For The Rl Circuit Pictured Below L 63 Henries And R 7 3 Ohms The Switch Is Placed In Position 1 For A Long Time B 1 (68.1 KiB) Viewed 41 times
For the RL circuit pictured below, L = 63 Henries and R = 7.3 Ohms. The switch is placed in position 1 for a long time before it is switched to position 2. After waiting 3 seconds, the current in the circuit is 10 Amperes. What is the potential difference across the battery? AV 1 S L mon R ww
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
