In the circuit shown in the figure, R₁ = 152, R₂ = 14 02, R3 = 160, V₁=1V, V₂=7 V, and the batteries are both ideal. Wha

Post by answerhappygod »

In The Circuit Shown In The Figure R 152 R 14 02 R3 160 V 1v V 7 V And The Batteries Are Both Ideal Wha 1
In The Circuit Shown In The Figure R 152 R 14 02 R3 160 V 1v V 7 V And The Batteries Are Both Ideal Wha 1 (49.8 KiB) Viewed 44 times

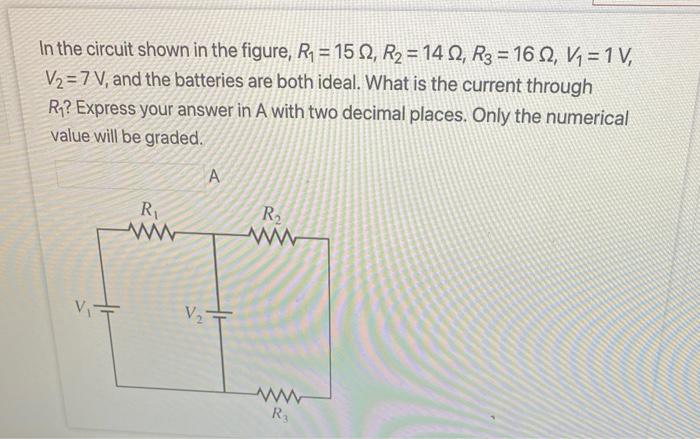

In the circuit shown in the figure, R₁ = 152, R₂ = 14 02, R3 = 160, V₁=1V, V₂=7 V, and the batteries are both ideal. What is the current through R₁? Express your answer in A with two decimal places. Only the numerical value will be graded. V₁ R₁ V₂ A R₂ ww ww R3
