Solve and verify the loop equation with numbers and steps. The question:

Post by **answerhappygod** » Thu Jul 07, 2022 2:07 pm

Solve and verify the loop equation with numbers and steps.

: Solve And Verify The Loop Equation With Numbers And Steps The Question 1 (255.2 KiB) Viewed 34 times

: Solve And Verify The Loop Equation With Numbers And Steps The Question 2 (186.69 KiB) Viewed 34 times

: Solve And Verify The Loop Equation With Numbers And Steps The Question 3 (23.36 KiB) Viewed 34 times

: Solve And Verify The Loop Equation With Numbers And Steps The Question 4 (11.86 KiB) Viewed 34 times

: Solve And Verify The Loop Equation With Numbers And Steps The Question 5 (62.99 KiB) Viewed 34 times

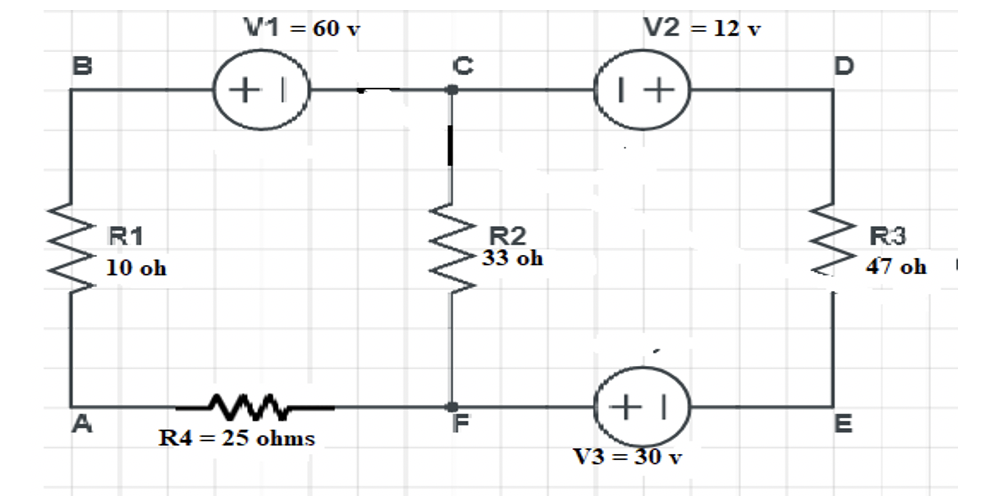

B A R1 10 oh V1 = 60 v +I R4 25 ohms C F R2 33 oh V2 = 12 v 1+ +1 V3 = 30 v D M E R3 47 oh I

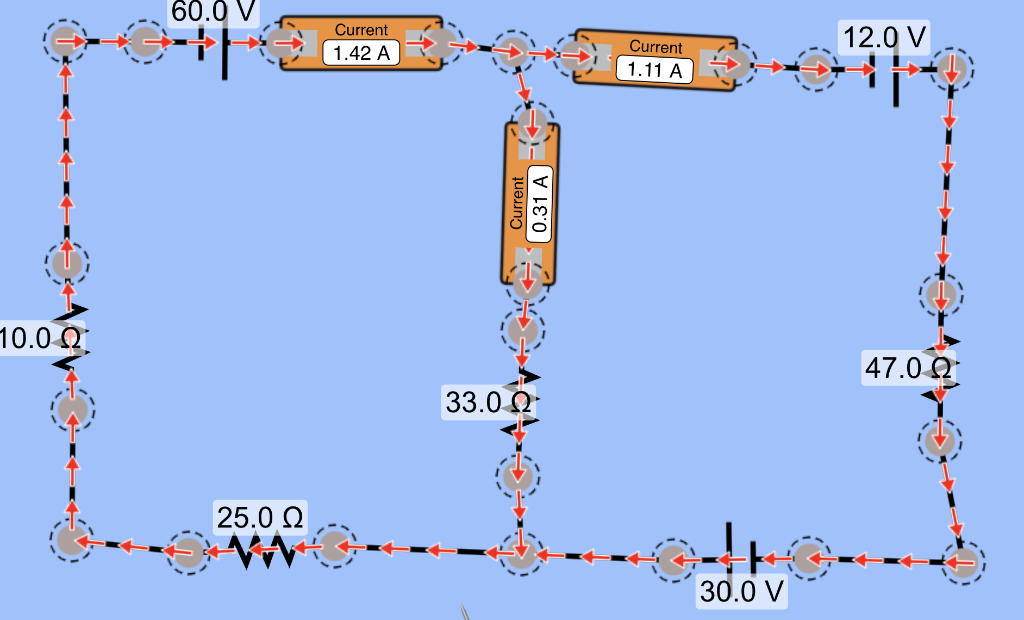

10.0 Ω 60.0 V 25.0 Ω Current 1.42 A Current 33.0 Ω [ 0.31 A Current 1.11 A 30.0 V 12.0 V *H 47.0 Ω

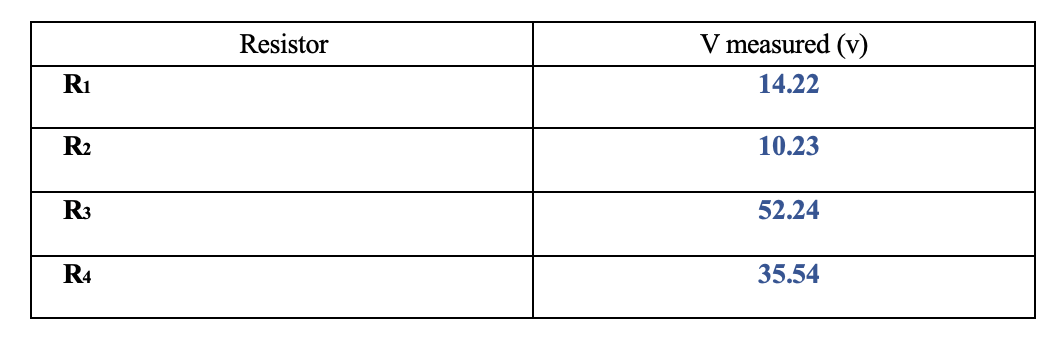

R₁ R₂ R3 R4 Resistor V measured (v) 14.22 10.23 52.24 35.54
3. Choose the loop FEDCF. Follow the Current and verify equation

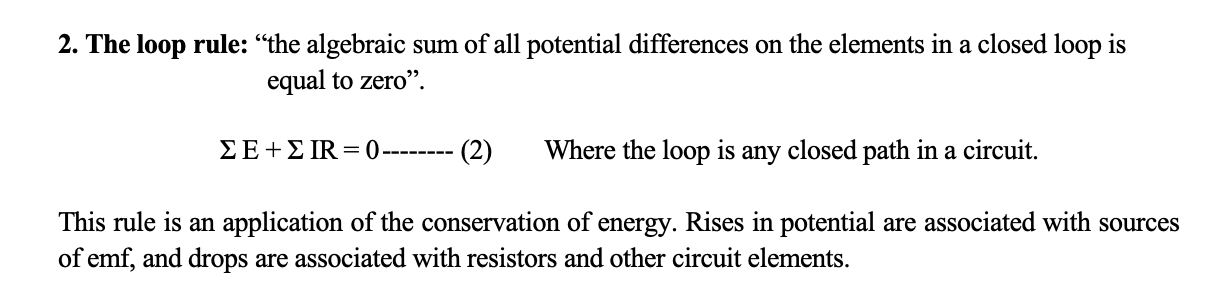

2. The loop rule: "the algebraic sum of all potential differences on the elements in a closed loop is equal to zero". ΣΕ + Σ IR = 0 (2) Where the loop is any closed path in a circuit. This rule is an application of the conservation of energy. Rises in potential are associated with sources of emf, and drops are associated with resistors and other circuit elements.
