QUESTION 4 4.1. An electric circuit consists of the following components: Resistors R₁ and R₂ connected in series, and R

Post by answerhappygod »

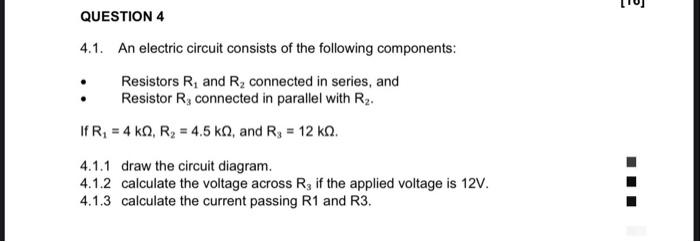

Question 4 4 1 An Electric Circuit Consists Of The Following Components Resistors R And R Connected In Series And R 1
Question 4 4 1 An Electric Circuit Consists Of The Following Components Resistors R And R Connected In Series And R 1 (19.13 KiB) Viewed 46 times
QUESTION 4 4.1. An electric circuit consists of the following components: Resistors R₁ and R₂ connected in series, and Resistor R, connected in parallel with R₂. If R₁ = 4 k0, R₂ = 4.5 kn, and R₂ = 12 kn. 4.1.1 draw the circuit diagram. 4.1.2 calculate the voltage across R, if the applied voltage is 12V. 4.1.3 calculate the current passing R1 and R3. E ---
