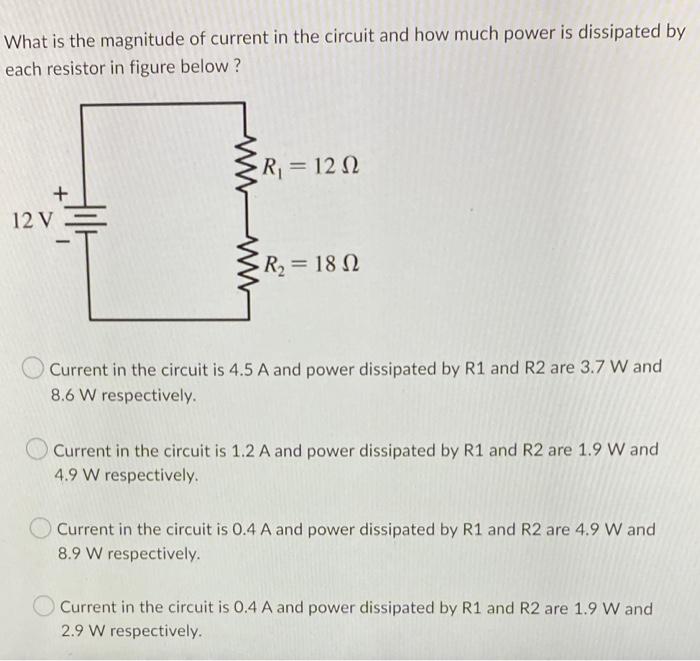

What is the magnitude of current in the circuit and how much power is dissipated by each resistor in figure below? + 12

[answerhappygod]

What Is The Magnitude Of Current In The Circuit And How Much Power Is Dissipated By Each Resistor In Figure Below 12 1 (51.16 KiB) Viewed 33 times

What is the magnitude of current in the circuit and how much power is dissipated by each resistor in figure below? + 12 V - R₁ = 120 R₂ = 180 Current in the circuit is 4.5 A and power dissipated by R1 and R2 are 3.7 W and 8.6 W respectively. Current in the circuit is 1.2 A and power dissipated by R1 and R2 are 1.9 W and 4.9 W respectively. Current in the circuit is 0.4 A and power dissipated by R1 and R2 are 4.9 W and 8.9 W respectively. Current in the circuit is 0.4 A and power dissipated by R1 and R2 are 1.9 W and 2.9 W respectively.
