Problem 3 For the circuit shown in the figure, R₁ = 6.00 2, R₂ = 6.00 2, R3 = 2.00 $2, R4 = 4.00 £2, R₁ = 3.00 £2, and t

Post by answerhappygod »

Problem 3 For The Circuit Shown In The Figure R 6 00 2 R 6 00 2 R3 2 00 2 R4 4 00 2 R 3 00 2 And T 1
Problem 3 For The Circuit Shown In The Figure R 6 00 2 R 6 00 2 R3 2 00 2 R4 4 00 2 R 3 00 2 And T 1 (21.83 KiB) Viewed 30 times

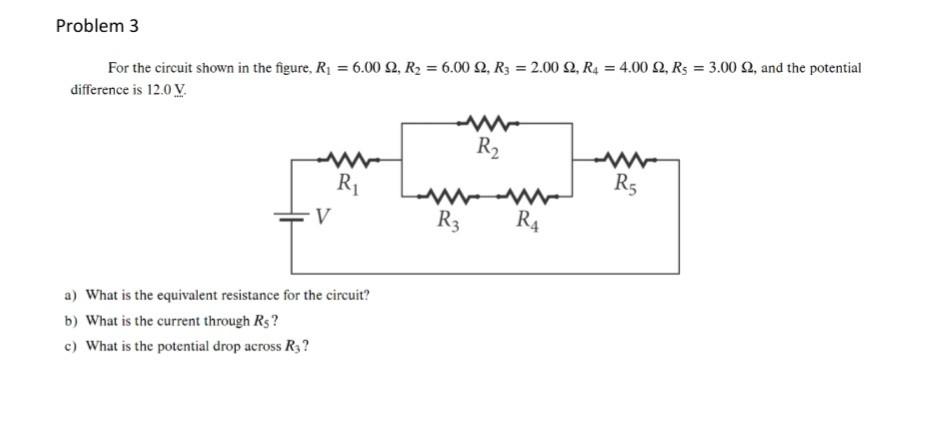

Problem 3 For the circuit shown in the figure, R₁ = 6.00 2, R₂ = 6.00 2, R3 = 2.00 $2, R4 = 4.00 £2, R₁ = 3.00 £2, and the potential difference is 12.0 V R₁ V a) What is the equivalent resistance for the circuit? b) What is the current through Rs? c) What is the potential drop across R₂? R3 R₂ R4 R5
