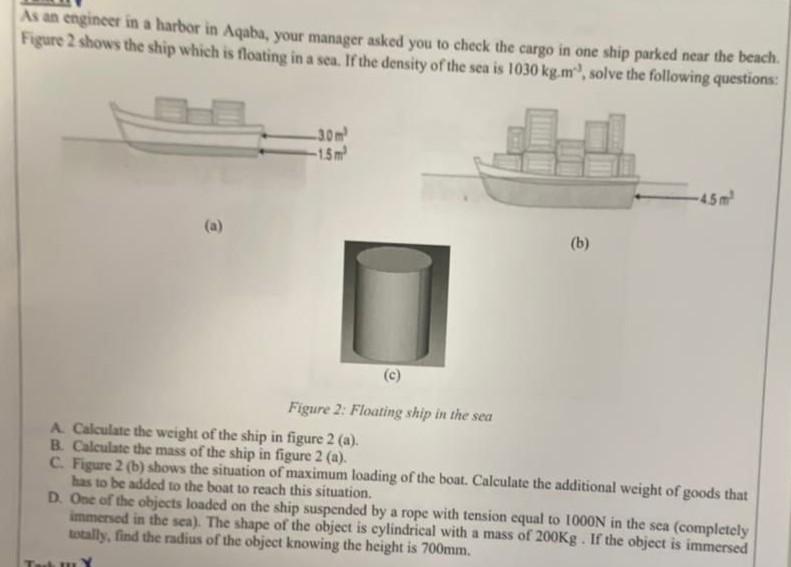

As an engineer in a harbor in Aqaba, your manager asked you to check the cargo in one ship parked near the beach. Figure 2 shows the ship which is floating in a sea. If the density of the sea is 1030 kg.m), solve the following questions: @ Tack M -1.5m² (c) Figure 2: Floating ship in the sea (b) -45m² A. Calculate the weight of the ship in figure 2 (a). B. Calculate the mass of the ship in figure 2 (a). C. Figure 2 (b) shows the situation of maximum loading of the boat. Calculate the additional weight of goods that has to be added to the boat to reach this situation. D. One of the objects loaded on the ship suspended by a rope with tension equal to 1000N in the sea (completely immersed in the sea). The shape of the object is cylindrical with a mass of 200Kg. If the object is immersed totally, find the radius of the object knowing the height is 700mm.
