find the tension in the cable(in N)

Post by answerhappygod »

find the tension in the cable(in N)
Find The Tension In The Cable In N 1
Find The Tension In The Cable In N 1 (14.28 KiB) Viewed 42 times
Find The Tension In The Cable In N 2
Find The Tension In The Cable In N 2 (92.31 KiB) Viewed 42 times

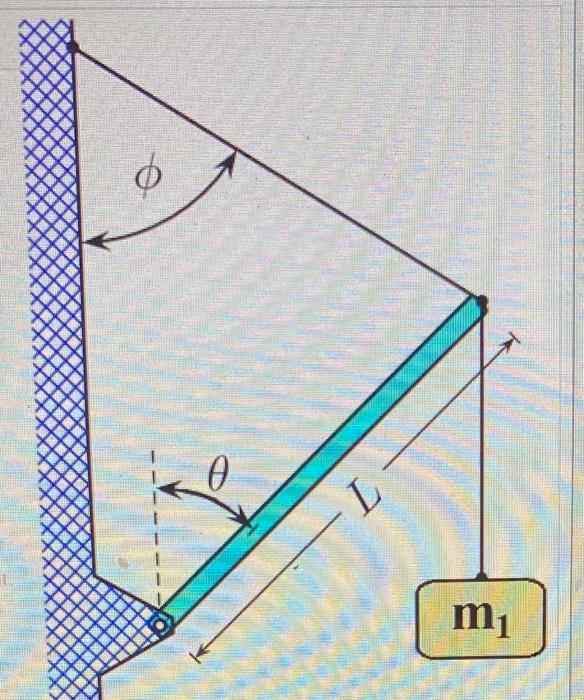

(5%) Problem 10: A uniform beam of mass m₂ = 51.9 kg supports a mass, m₁ = 27 kg, as shown in the figure. The cable is at an angle of 70.5° with the vertical wall and the beam is attached to the wall by a with the wall. pivoting pin at an angle of 044 e
m₁ T 0
