A free body diagram for a box on an incline plane is shown below. The box is accelerating along the indicated +x-axis. S

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A free body diagram for a box on an incline plane is shown below. The box is accelerating along the indicated +x-axis. S

Post by answerhappygod »

A Free Body Diagram For A Box On An Incline Plane Is Shown Below The Box Is Accelerating Along The Indicated X Axis S 1
A Free Body Diagram For A Box On An Incline Plane Is Shown Below The Box Is Accelerating Along The Indicated X Axis S 1 (36.7 KiB) Viewed 43 times

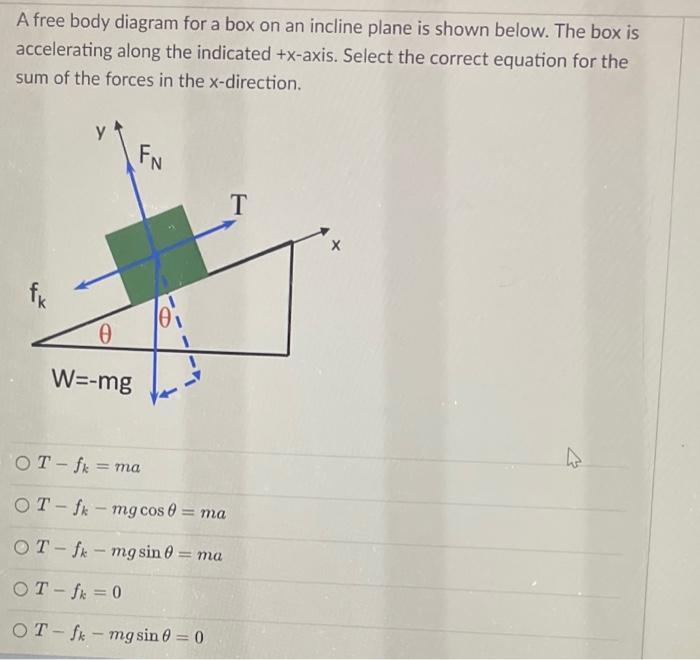

A free body diagram for a box on an incline plane is shown below. The box is accelerating along the indicated +x-axis. Select the correct equation for the sum of the forces in the x-direction. fk 0 W=-mg FN OT-fk=ma OT-fk-mg cos= = ma OT-fk-mg sin0 = ma OT-fk=0 OT-fk-mg sin 0 = 0 X
