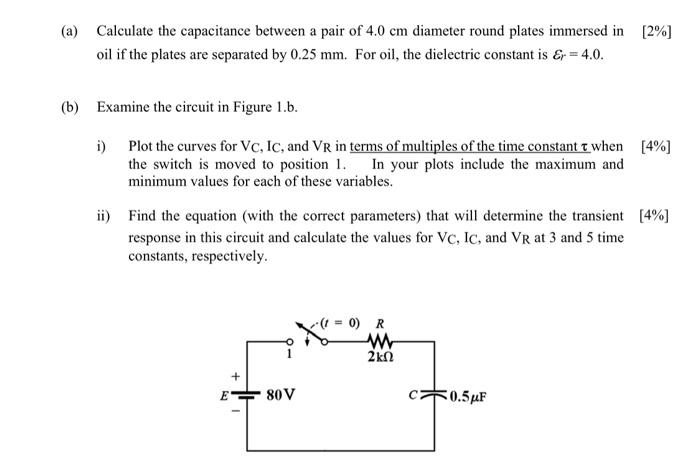

(a) Calculate the capacitance between a pair of 4.0 cm diameter round plates immersed in [2%] oil if the plates are separated by 0.25 mm. For oil, the dielectric constant is & = 4.0. (b) Examine the circuit in Figure 1.b. i) Plot the curves for VC, IC, and VR in terms of multiples of the time constant T when [4%] the switch is moved to position 1. In your plots include the maximum and minimum values for each of these variables. ii) Find the equation (with the correct parameters) that will determine the transient [4%] response in this circuit and calculate the values for VC, IC, and VR at 3 and 5 time constants, respectively. E + 80V = 0) R 2k0 0.5 μF
