Determine the forces in members EH and El of the double Fink truss (positive if in tension, negative if in compression).

[answerhappygod]

Determine The Forces In Members Eh And El Of The Double Fink Truss Positive If In Tension Negative If In Compression 1 (24.33 KiB) Viewed 40 times

Please give the right answers. this is my last attempt. thumbs up if given the correct answers... the figure is below..

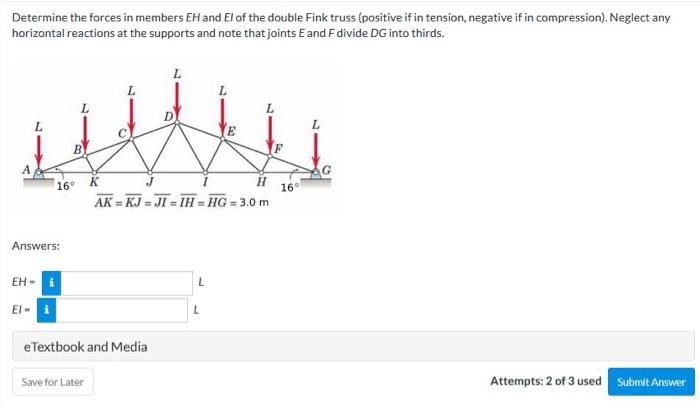

Determine the forces in members EH and EI of the double Fink truss (positive if in tension, negative if in compression). Neglect any horizontal reactions at the supports and note that joints E and F divide DG into thirds.
Answers:
EH = L
EI = L
Determine the forces in members EH and El of the double Fink truss (positive if in tension, negative if in compression). Neglect any horizontal reactions at the supports and note that joints E and F divide DG into thirds. A Answers: EH - i El- B 16° K L eTextbook and Media Save for Later AK=KJ=JI=IH=HG = 3.0 m L L L H 16 Attempts: 2 of 3 used Submit Answer
