The figure is below. pls give me the right answers. this is my last attempt.. thumbs up if correct.

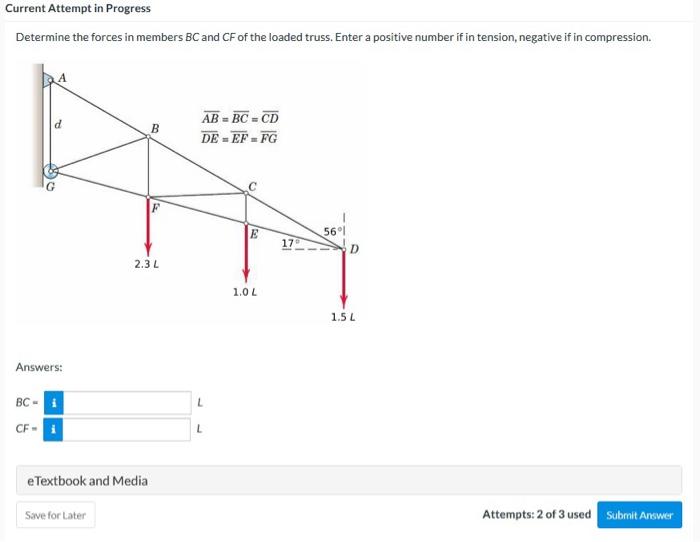

Determine the forces in members BC and CF of the loaded truss. Enter a positive number if in tension, negative if in compression.
Answers:
BC = L
CF = L
Current Attempt in Progress Determine the forces in members BC and CF of the loaded truss. Enter a positive number if in tension, negative if in compression. Answers: BC-i CF-i B 2.3 L e Textbook and Media Save for Later AB=BC=CD DE-EF=FG L 1.0 L 56°1 D 1.5 L Attempts: 2 of 3 used Submit Answer
