3. (a) An inductive pick-up has 2600 pulses per shaft resolution. Determine the rotational speed of a shaft if it produc

[answerhappygod]

3 A An Inductive Pick Up Has 2600 Pulses Per Shaft Resolution Determine The Rotational Speed Of A Shaft If It Produc 1 (114.39 KiB) Viewed 45 times

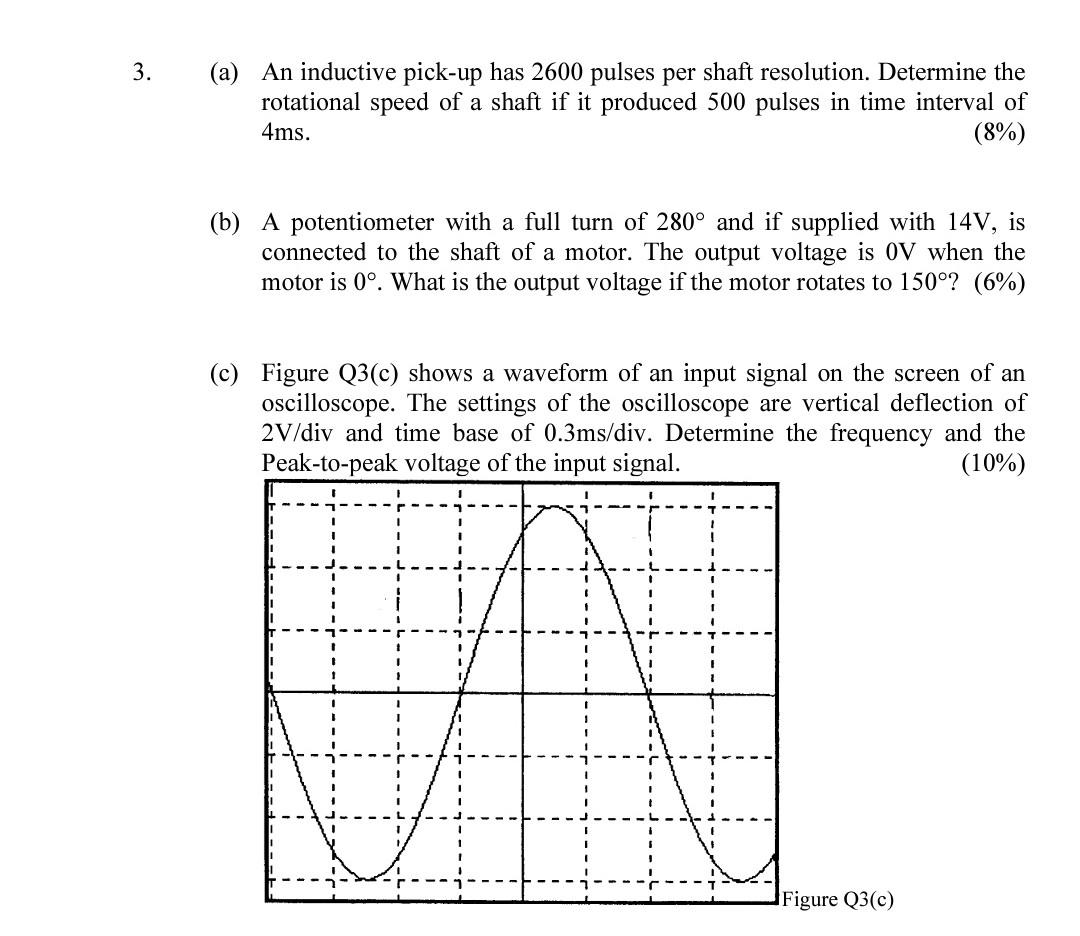

3. (a) An inductive pick-up has 2600 pulses per shaft resolution. Determine the rotational speed of a shaft if it produced 500 pulses in time interval of 4ms. (8%) (b) A potentiometer with a full turn of 280° and if supplied with 14V, is connected to the shaft of a motor. The output voltage is 0V when the motor is 0°. What is the output voltage if the motor rotates to 150°? (6%) (c) Figure Q3(c) shows a waveform of an input signal on the screen of an oscilloscope. The settings of the oscilloscope are vertical deflection of 2V/div and time base of 0.3ms/div. Determine the frequency and the Peak-to-peak voltage of the input signal. (10%) Figure Q3(c)
