The rotor voltage equation of a squirrel-cage induction machine, in a generic reference frame, is given as: 7 = Rpir + d

Post by answerhappygod »

The Rotor Voltage Equation Of A Squirrel Cage Induction Machine In A Generic Reference Frame Is Given As 7 Rpir D 1
The Rotor Voltage Equation Of A Squirrel Cage Induction Machine In A Generic Reference Frame Is Given As 7 Rpir D 1 (73.75 KiB) Viewed 335 times

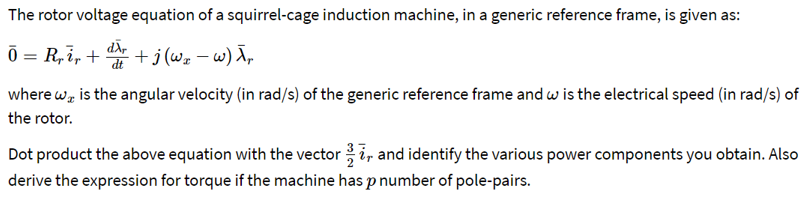

The rotor voltage equation of a squirrel-cage induction machine, in a generic reference frame, is given as: 7 = Rpir + d +j (wz -w) where w., is the angular velocity (in rad/s) of the generic reference frame and w is the electrical speed (in rad/s) of the rotor. Dot product the above equation with the vector ir and identify the various power components you obtain. Also derive the expression for torque if the machine has p number of pole-pairs.
