Question 1: 1200 bbl/d of brine (s.g= 1.05) is being injected at point A in the tube as shown in figure below, 8.6-lb/ft

[answerhappygod]

Question 1 1200 Bbl D Of Brine S G 1 05 Is Being Injected At Point A In The Tube As Shown In Figure Below 8 6 Lb Ft 1 (23.1 KiB) Viewed 31 times

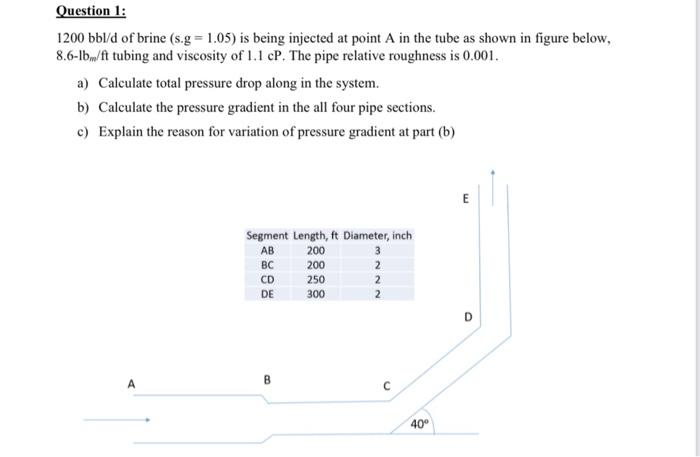

Question 1: 1200 bbl/d of brine (s.g= 1.05) is being injected at point A in the tube as shown in figure below, 8.6-lb/ft tubing and viscosity of 1.1 cP. The pipe relative roughness is 0.001. a) Calculate total pressure drop along in the system. b) Calculate the pressure gradient in the all four pipe sections. c) Explain the reason for variation of pressure gradient at part (b) A Segment Length, ft Diameter, inch AB 200 BC 200 CD DE B 250 300 3 2 2 2 40⁰ E O
