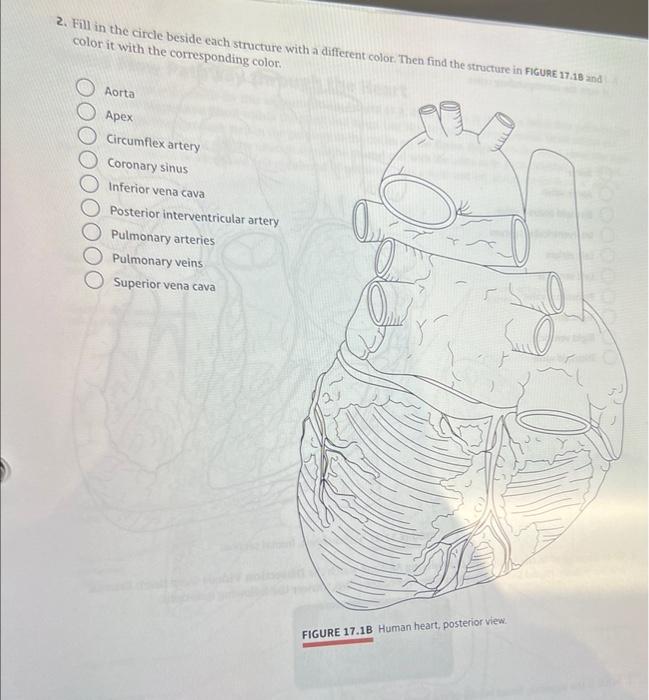

2. Fill in the circle beside each structure with a different color. Then find the structure in FIGURE 17.18 and color it with the corresponding color. Aorta Apex Circumflex artery Coronary sinus Inferior vena cava Posterior interventricular artery Pulmonary arteries Pulmonary veins Superior vena cava FIGURE 17.1B Human heart, posterior view.

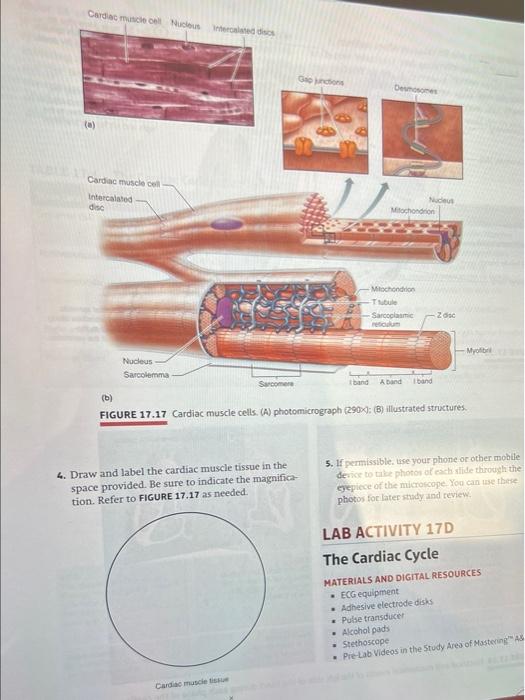

Cardiac muscle cell Nucleus Intercalated discs (a) Cardiac muscle cell Intercalated disc Nucleus Sarcolemma Sarcomere Gap junctions Cardiac muscle tissue 4. Draw and label the cardiac muscle tissue in the space provided. Be sure to indicate the magnifica- tion. Refer to FIGURE 17.17 as needed. Desmosomes Mitochondrion Tubule Sarcoplasmic reticulum Mitochondrion I band A band Nucleus • Alcohol pads . band (b) FIGURE 17.17 Cardiac muscle cells. (A) photomicrograph (290): (B) illustrated structures. -Zdsc Myofibr 5. If permissible, use your phone or other mobile device to take photos of each slide through the eyepiece of the microscope. You can use these photos for later study and review. LAB ACTIVITY 17D The Cardiac Cycle MATERIALS AND DIGITAL RESOURCES ECG equipment Adhesive electrode disks Pulse transducer Stethoscope Pre-Lab Videos in the Study Area of Mastering A
