Pa P₁ V 3. A diatomic ideal gas follows the isobaric process 1 -> 2 and adiabatic process 2 -> 3, shown in the figure. I

[answerhappygod]

Pa P V 3 A Diatomic Ideal Gas Follows The Isobaric Process 1 2 And Adiabatic Process 2 3 Shown In The Figure I 1 (30.39 KiB) Viewed 35 times

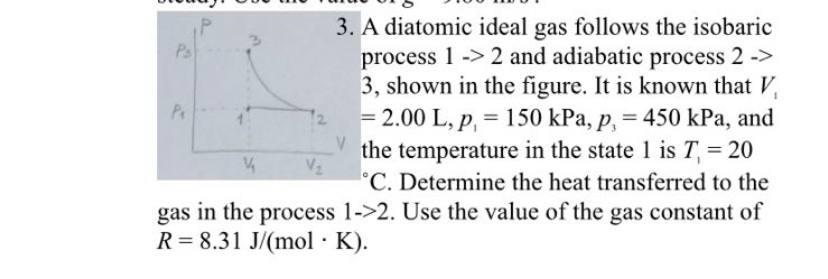

Pa P₁ V 3. A diatomic ideal gas follows the isobaric process 1 -> 2 and adiabatic process 2 -> 3, shown in the figure. It is known that V = 2.00 L, p = 150 kPa, p, = 450 kPa, and the temperature in the state 1 is T₁ = 20 °C. Determine the heat transferred to the gas in the process 1->2. Use the value of the gas constant of R= 8.31 J/(mol. K).
