In the circuit given below, V=7 V. Determine the current through the 10 kΩ resistor. V Μ 4 ΚΩ 3 ΚΩ Μ 2 ΚΩ Μ 1 ΚΩ 4V Μ 5

Post by answerhappygod »

1
1 (40.64 KiB) Viewed 12 times

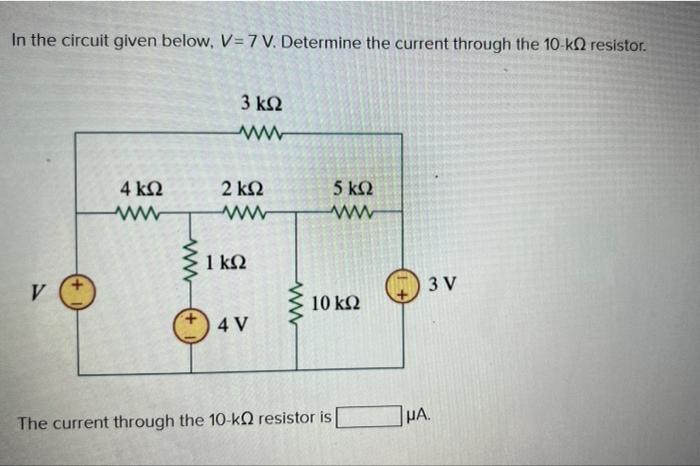

In the circuit given below, V=7 V. Determine the current through the 10 kΩ resistor. V Μ 4 ΚΩ 3 ΚΩ Μ 2 ΚΩ Μ 1 ΚΩ 4V Μ 5 ΚΩ ww 10 ΚΩ The current through the 10-k resistor is 1+ ΙΜΑ. 3V
