Practice Another A vessel with a movable piston contains 1.20 mol of an ideal gas with initial pressure P-2:03 x 105 Pa,

[answerhappygod]

Practice Another A Vessel With A Movable Piston Contains 1 20 Mol Of An Ideal Gas With Initial Pressure P 2 03 X 105 Pa 1 (21.06 KiB) Viewed 12 times

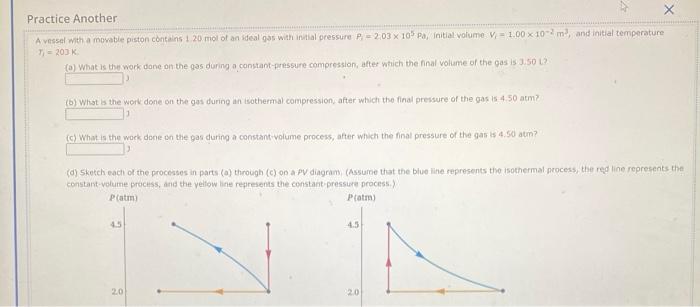

Practice Another A vessel with a movable piston contains 1.20 mol of an ideal gas with initial pressure P-2:03 x 105 Pa, initial volume V, 1.00 x 10-2 m², and initial temperature 7,- 203 K (a) What is the work done on the gas during a constant-pressure compression, after which the final volume of the gas is 3.50 L? (b) What is the work done on the gas during an isothermal compression, after which the final pressure of the gas is 4.50 atm? (c) What is the work done on the gas during a constant volume process, after which the final pressure of the gas is 4.50 atm? (d) Sketch each of the processes in parts (a) through (c) on a PV diagram, (Assume that the blue line represents the isothermal process, the red line represents the constant-volume process, and the yellow line represents the constant-pressure process.) P(atm) P(atm) 4.5 20 X 4.5 2.0
