(c) With regard to standard rectifier diodes: i) ii) Draw the practical' and 'complete' circuit models, respectively, fo

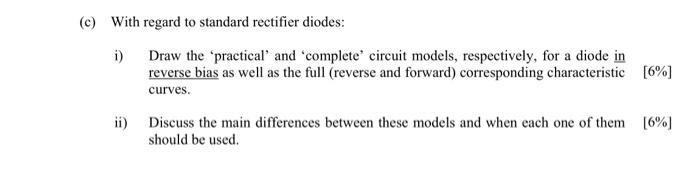

(c) With regard to standard rectifier diodes: i) ii) Draw the practical' and 'complete' circuit models, respectively, for a diode in reverse bias as well as the full (reverse and forward) corresponding characteristic [6%] curves. Discuss the main differences between these models and when each one of them [6%] should be used.
