The battery terminal voltage in the figure below is & 9,30 V and the current I reaches half its maximum value of 7.00 A

Post by answerhappygod »

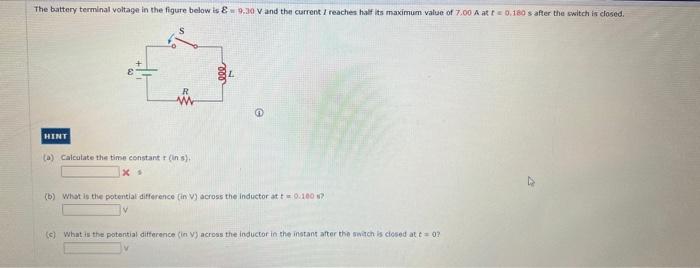

The Battery Terminal Voltage In The Figure Below Is 9 30 V And The Current I Reaches Half Its Maximum Value Of 7 00 A 1
The Battery Terminal Voltage In The Figure Below Is 9 30 V And The Current I Reaches Half Its Maximum Value Of 7 00 A 1 (18.24 KiB) Viewed 29 times
The battery terminal voltage in the figure below is & 9,30 V and the current I reaches half its maximum value of 7.00 A at t= 0.180 s after the switch is closed. HINT R www (a) Calculate the time constant (ins). (b) What is the potential difference (in V) across the inductor at t= 0.1007 (s) What is the potential difference (in V) across the inductor in the instant after the switch is closed at t=0?
