Two parallel long straight wires sit beside one another on a wooden table, separated by a distance of 4.0 cm. From your

[answerhappygod]

Two Parallel Long Straight Wires Sit Beside One Another On A Wooden Table Separated By A Distance Of 4 0 Cm From Your 1 (39.92 KiB) Viewed 25 times

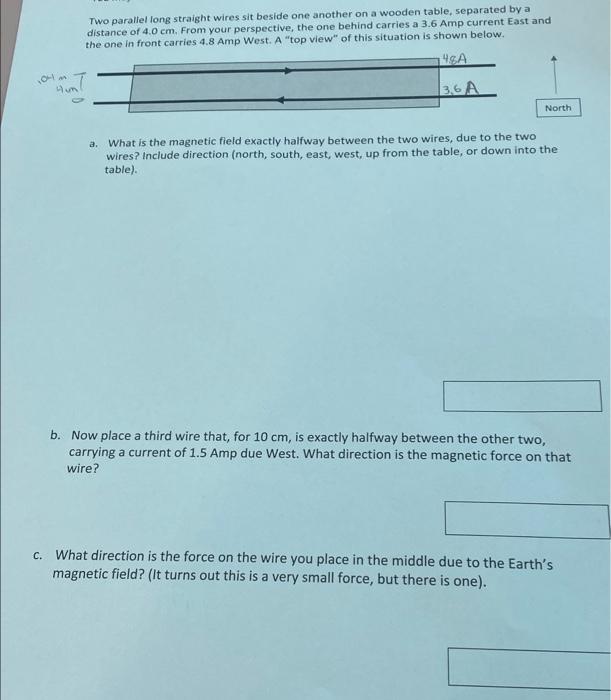

Two parallel long straight wires sit beside one another on a wooden table, separated by a distance of 4.0 cm. From your perspective, the one behind carries a 3.6 Amp current East and the one in front carries 4.8 Amp West. A "top view of this situation is shown below. 49A 0-1 un 7 13.6A North a. What is the magnetic field exactly halfway between the two wires, due to the two wires? Include direction (north, south, east, west, up from the table, or down into the table) b. Now place a third wire that, for 10 cm, is exactly halfway between the other two, carrying a current of 1.5 Amp due West. What direction is the magnetic force on that wire? c. What direction is the force on the wire you place in the middle due to the Earth's magnetic field? (It turns out this is a very small force, but there is one).
