RC-Question4 The diagram below depicts an RC-circuit where C = 3.45 AF, R2 = 22.0.22, R2 = 18.5 77, and Vo = 13.5 V. Wha

Post by answerhappygod »

Rc Question4 The Diagram Below Depicts An Rc Circuit Where C 3 45 Af R2 22 0 22 R2 18 5 77 And Vo 13 5 V Wha 1
Rc Question4 The Diagram Below Depicts An Rc Circuit Where C 3 45 Af R2 22 0 22 R2 18 5 77 And Vo 13 5 V Wha 1 (192.49 KiB) Viewed 45 times

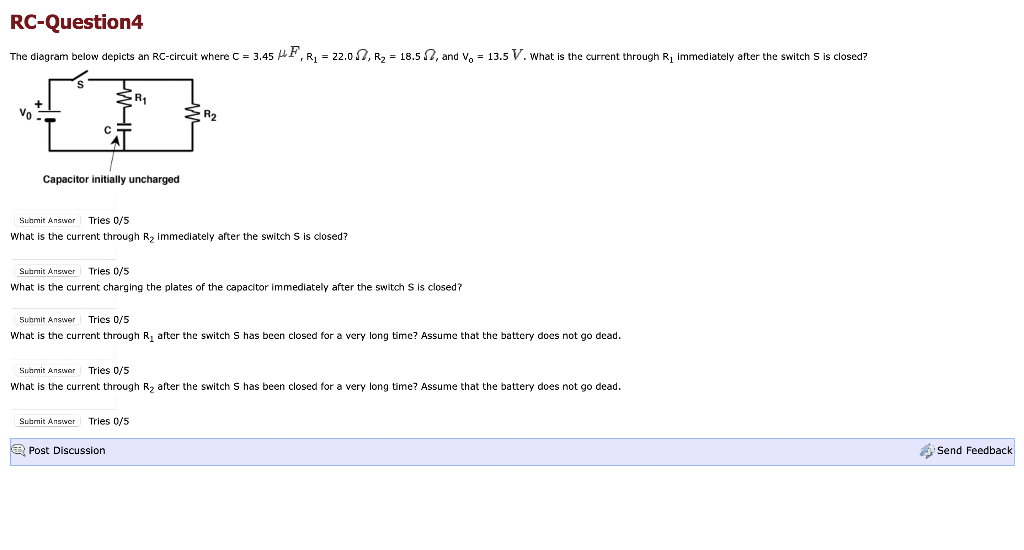

RC-Question4 The diagram below depicts an RC-circuit where C = 3.45 AF, R2 = 22.0.22, R2 = 18.5 77, and Vo = 13.5 V. What is the current through R, immediately after the switch S is closed? Ri R1 VO R2 Capacitor initially uncharged Submit Answer Tries 0/5 What is the current through Ry immediately after the switch S is closed? Submit Answer Tries 0/5 What the current charging the plates of the capacitor immediately after the switch S is closed? Submit Answer Tries 0/5 What the current through R, after the switch S has been closed for a very long time? Assume that the battery does not go dead. Submit Answer Tries 0/5 What the current through Ry after the switch s has been closed for a very long time? Assume that the battery does not go dead. Submit Answer Tries 0/5 Post Discussion Send Feedback
