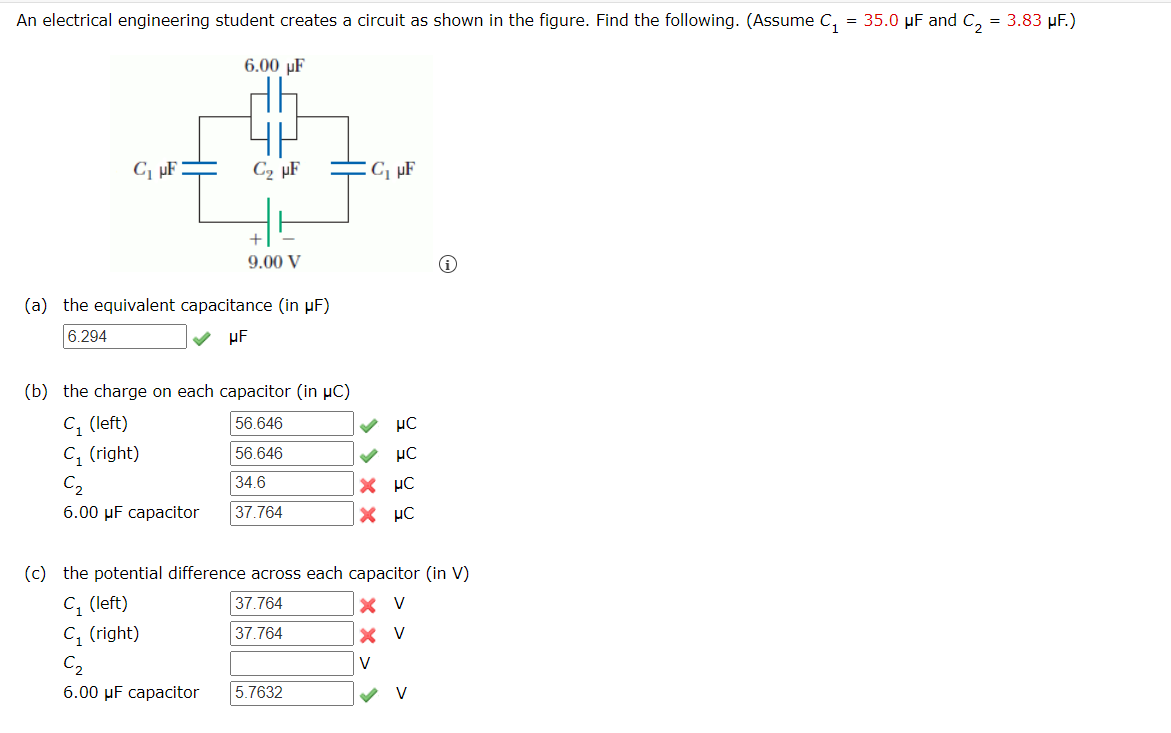

An Electrical Engineering Student Creates A Circuit As Shown In The Figure Find The Following Assume C1 35 0 Pf And 1 (44.82 KiB) Viewed 37 times
quick answer for all please..
An electrical engineering student creates a circuit as shown in the figure. Find the following. (Assume C1 = 35.0 pF and C2 = 3.83 uF.) 6.00 F CF C2 pF CUF 9.00 V (a) the equivalent capacitance (in uF) 6.294 UF (b) the charge on each capacitor (in C) C, (left) 56.646 C (right) 56.646 UC C2 34.6 Χ με 6.00 uF capacitor 37.764 хус C (left) (c) the potential difference across each capacitor (in V) 37.764 хv C (right) 37.764 X V C2 V 6.00 uF capacitor 5.7632 V
