Part A A hydraulic press for compacting powdered samples has a large cylinder which is 10.0 cm in diameter, and a small

[answerhappygod]

Part A A Hydraulic Press For Compacting Powdered Samples Has A Large Cylinder Which Is 10 0 Cm In Diameter And A Small 1 (99.11 KiB) Viewed 27 times

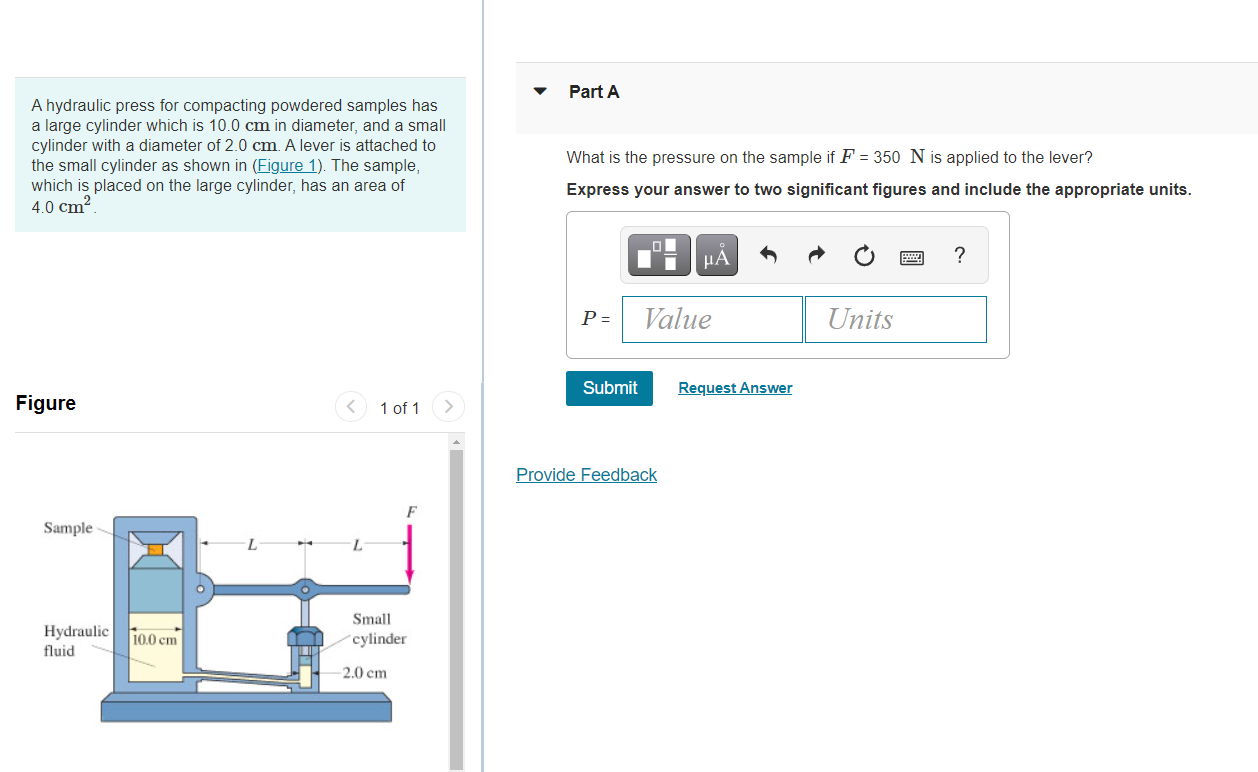

Part A A hydraulic press for compacting powdered samples has a large cylinder which is 10.0 cm in diameter, and a small cylinder with a diameter of 20 cm. A lever is attached to the small cylinder as shown in (Figure 1). The sample, which is placed on the large cylinder, has an area of 4.0 cm2 What is the pressure on the sample if F = 350 N is applied to the lever? Express your answer to two significant figures and include the appropriate units. UA ? P- Value Units Submit Request Answer Figure < 1 of 1 Provide Feedback F Sample L Hydraulic fluid Small cylinder 10.0 cm 2.0 cm
