2. A simple supported beam of length 4 m carries a point load of 7.25 kN at mid span and a Juniformly distributed load o

Post by answerhappygod »

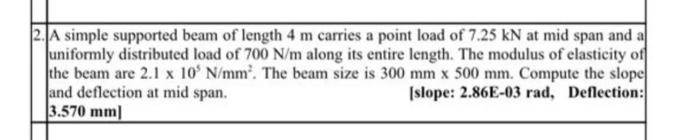

2 A Simple Supported Beam Of Length 4 M Carries A Point Load Of 7 25 Kn At Mid Span And A Juniformly Distributed Load O 1
2 A Simple Supported Beam Of Length 4 M Carries A Point Load Of 7 25 Kn At Mid Span And A Juniformly Distributed Load O 1 (16.88 KiB) Viewed 19 times
2. A simple supported beam of length 4 m carries a point load of 7.25 kN at mid span and a Juniformly distributed load of 700 N/m along its entire length. The modulus of elasticity of the beam are 2.1 x 10 N/mm'. The beam size is 300 mm x 500 mm. Compute the slope and deflection at mid span. (slope: 2.86E-03 rad, Deflection: |3.570 mm)
