b) Consider the continuous time system shown in Figure Q.2(b). Based on the input output relationship and with appropria

[answerhappygod]

B Consider The Continuous Time System Shown In Figure Q 2 B Based On The Input Output Relationship And With Appropria 1 (141.84 KiB) Viewed 34 times

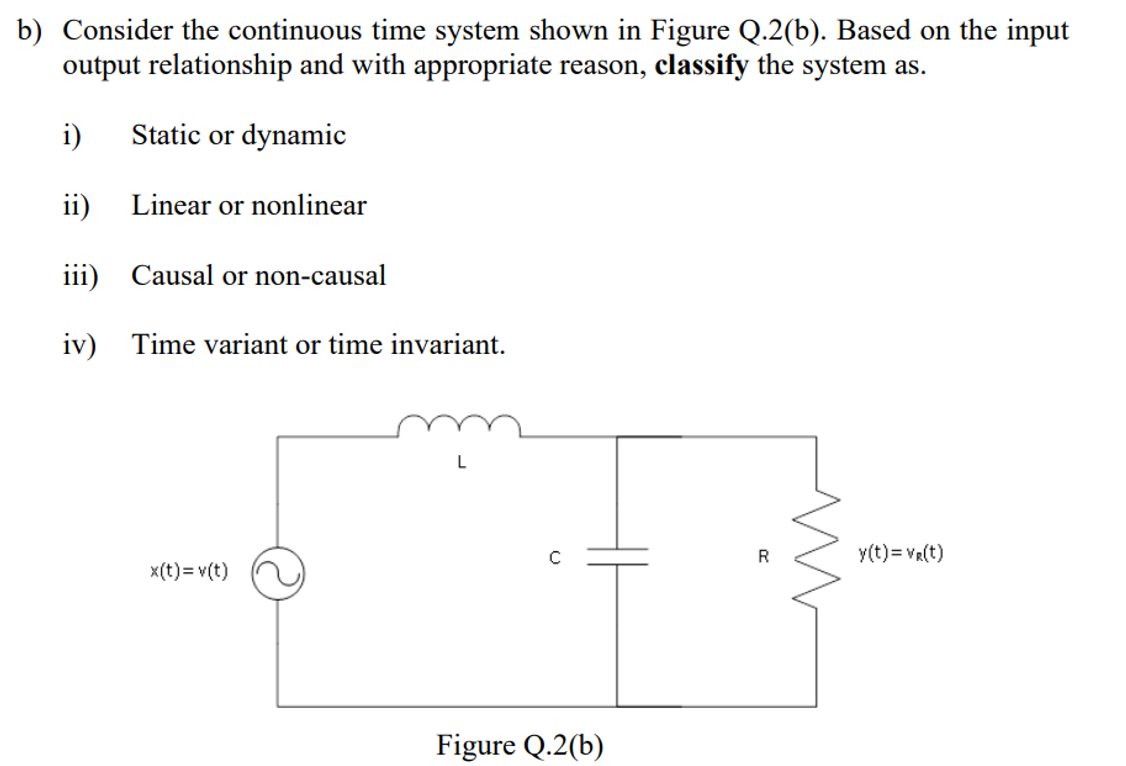

b) Consider the continuous time system shown in Figure Q.2(b). Based on the input output relationship and with appropriate reason, classify the system as. i) Static or dynamic ii) Linear or nonlinear iii) Causal or non-causal iv) Time variant or time invariant. L 1 R y(t)=ve(t) x(t)=v(t) Figure Q.2(b)
