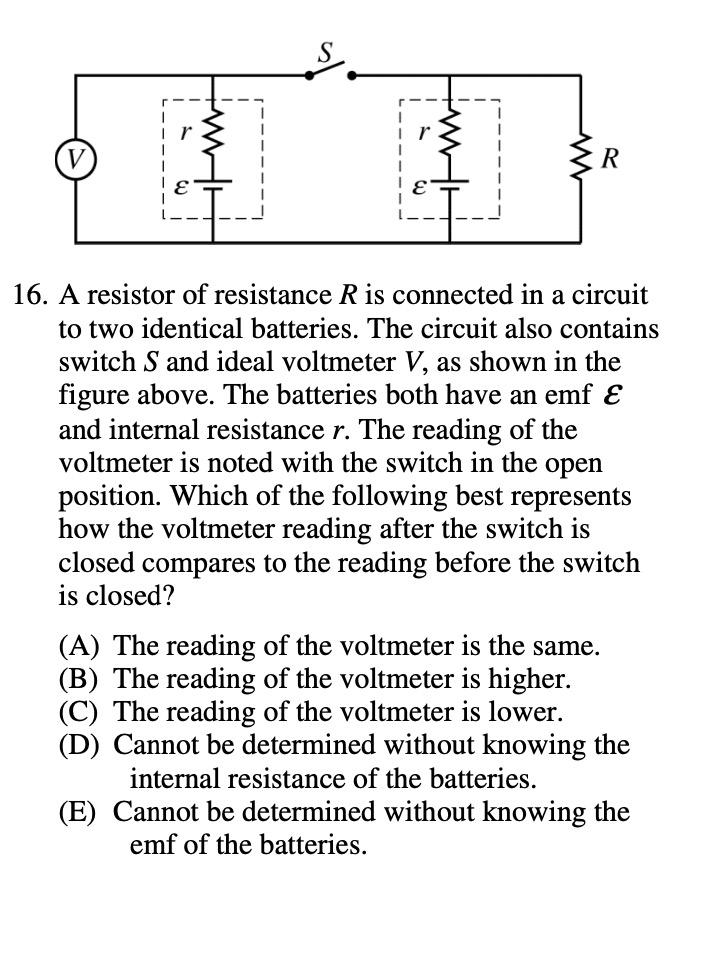

a resistor of resistance R is connected in a circuit to two
identical batteries. the circuit also contains switch S and ideal
voltmeter V, as shown in the figure above. the batteries both have
an emf e and internal resistance r. the reading of the voltmeter is
noted with the switch in the open position. Which of the following
best represents how the voltmeter reading after the switch is
closed compares to the reading before the switch is closed?
A Resistor Of Resistance R Is Connected In A Circuit To Two Identical Batteries The Circuit Also Contains Switch S And 1 (111.2 KiB) Viewed 102 times
S V R E w 16. A resistor of resistance R is connected in a circuit to two identical batteries. The circuit also contains switch S and ideal voltmeter V, as shown in the figure above. The batteries both have an emf E and internal resistance r. The reading of the voltmeter is noted with the switch in the open position. Which of the following best represents how the voltmeter reading after the switch is closed compares to the reading before the switch is closed? (A) The reading of the voltmeter is the same. (B) The reading of the voltmeter is higher. (C) The reading of the voltmeter is lower. (D) Cannot be determined without knowing the internal resistance of the batteries. (E) Cannot be determined without knowing the emf of the batteries.
