In the single line diagram shown, the current is not to exceed 125% of the load. Using the TCC Curve below, find the tim

[answerhappygod]

In The Single Line Diagram Shown The Current Is Not To Exceed 125 Of The Load Using The Tcc Curve Below Find The Tim 1 (530.96 KiB) Viewed 17 times

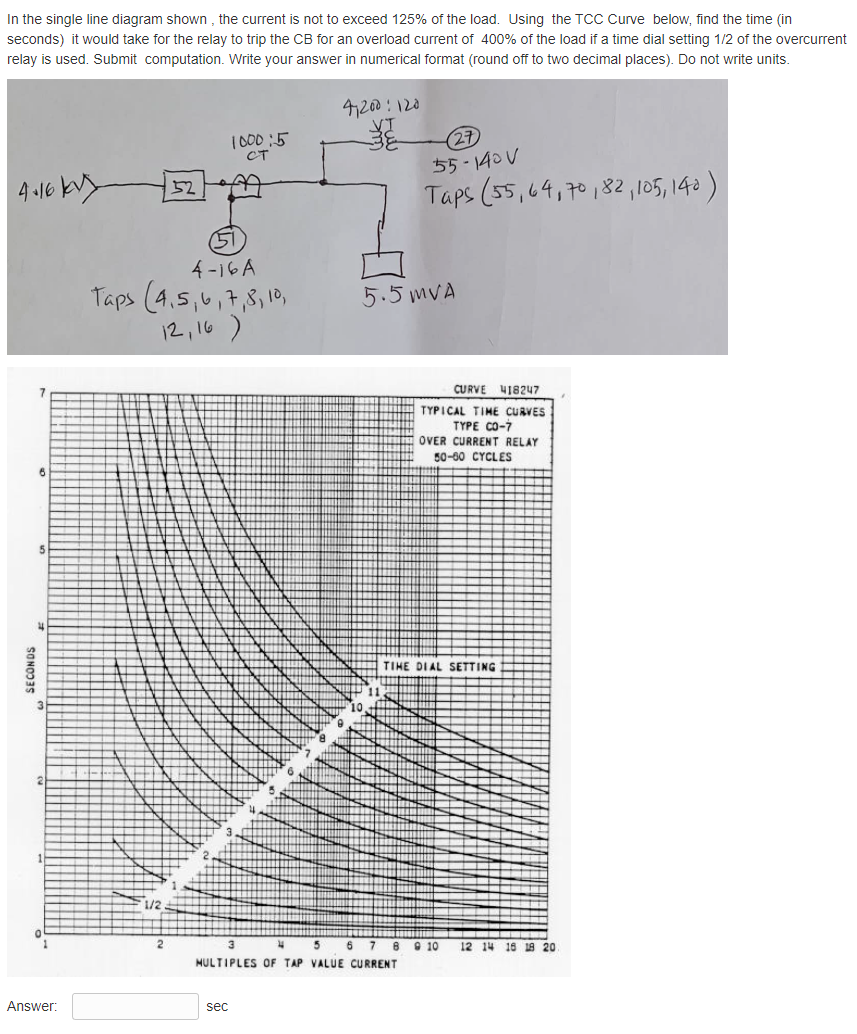

In the single line diagram shown, the current is not to exceed 125% of the load. Using the TCC Curve below, find the time (in seconds) it would take for the relay to trip the CB for an overload current of 400% of the load if a time dial setting 1/2 of the overcurrent relay is used. Submit computation. Write your answer in numerical format (round off to two decimal places). Do not write units. 4.16 k SECONDS Answer: 52 1000:5 CT ∞ 51 4-16 A Taps (4,5,6,7,8,10, 12, 16) sec 4,200 120 菲 (27 55-140V Taps (55, 64, 70, 82, 105, 140) 5.5 MVA CURVE 418247 TYPICAL TIME CURVES TYPE CO-7 OVER CURRENT RELAY 50-60 CYCLES TIHE DIAL SETTING 4 5 6 7 8 9 10 12 14 16 18 20 MULTIPLES OF TAP VALUE CURRENT
